SDO HMI 2014-04-09 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.97 | 0.00 | 8.58 | -13.96 | 300.69 | -28.90 | 108.30 | 0.4969 | -157.1 | -183.7 | |
|
previous
or next observation for the same group /

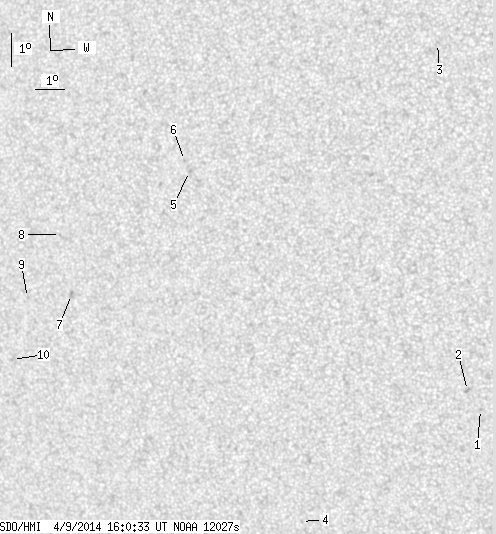

back to the solar disc SDO HMI 2014-04-09 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.43 | -18.00 | 309.56 | -20.03 | 123.26 | 0.3913 | 892.0 | 623.4 | |
| 0.00 | 2.56 | 0.00 | 1.37 | -17.41 | 309.20 | -20.40 | 121.49 | 0.3917 | 885.0 | 697.8 | |
| 0.00 | 1.67 | 0.00 | 0.88 | -6.89 | 309.07 | -20.52 | 93.60 | 0.3503 | -17.0 | -3.7 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -21.20 | 302.84 | -26.76 | 122.97 | 0.5024 | 716.0 | 563.6 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -10.37 | 300.51 | -29.09 | 100.52 | 0.4884 | -798.0 | -663.1 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -10.03 | 300.37 | -29.23 | 99.80 | 0.4899 | -682.0 | -573.4 | |
| 0.00 | 3.61 | 0.00 | 2.16 | -13.84 | 295.79 | -33.80 | 105.84 | 0.5637 | -703.0 | -573.9 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -12.01 | 295.67 | -33.93 | 102.58 | 0.5615 | -472.0 | -506.2 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -13.83 | 294.13 | -35.46 | 105.37 | 0.5864 | -728.0 | -573.3 | |
| 0.00 | 1.41 | 0.00 | 0.87 | -15.67 | 293.20 | -36.39 | 108.15 | 0.6034 | -664.0 | -575.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
