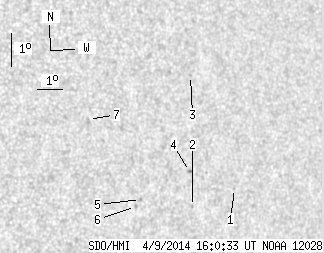

SDO HMI 2014-04-09 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.45 | 0.00 | 5.56 | -8.19 | 10.83 | 41.24 | 264.44 | 0.6577 | 453.3 | 404.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.61 | -8.49 | 13.82 | 44.22 | 264.00 | 0.6959 | 479.0 | 307.5 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -9.15 | 12.15 | 42.56 | 263.01 | 0.6750 | 665.0 | 538.3 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -5.24 | 11.63 | 42.03 | 268.86 | 0.6692 | 697.0 | 565.9 | |
| 0.00 | 1.32 | 0.00 | 0.88 | -8.11 | 11.89 | 42.29 | 264.55 | 0.6715 | 811.0 | 712.1 | |
| 0.00 | 1.67 | 0.00 | 1.09 | -9.08 | 10.02 | 40.43 | 263.04 | 0.6474 | 683.0 | 586.8 | |
| 0.00 | 1.41 | 0.00 | 0.91 | -9.31 | 9.86 | 40.26 | 262.69 | 0.6453 | 488.0 | 492.9 | |
| 0.00 | 1.23 | 0.00 | 0.77 | -6.82 | 7.73 | 38.13 | 266.62 | 0.6164 | -650.0 | -473.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
