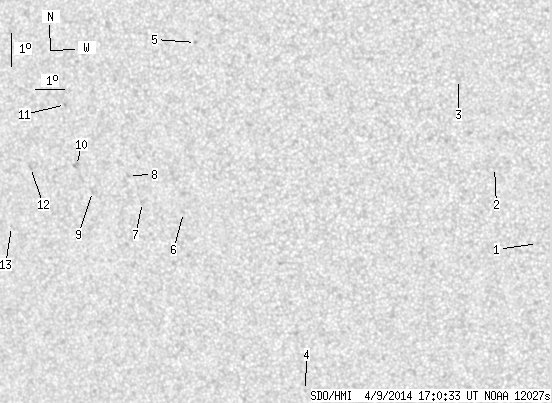

SDO HMI 2014-04-09 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.38 | 0.00 | 11.20 | -14.19 | 299.00 | -30.04 | 108.31 | 0.5119 | -327.7 | -359.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.61 | -16.95 | 311.39 | -17.66 | 123.82 | 0.3507 | 2.0 | 4.9 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -14.59 | 310.20 | -18.84 | 116.30 | 0.3502 | -11.0 | -3.7 | |
| 0.00 | 1.94 | 0.00 | 1.02 | -11.89 | 309.25 | -19.80 | 108.11 | 0.3502 | 8.0 | 0.5 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -21.16 | 302.83 | -26.21 | 123.37 | 0.4952 | 695.0 | 605.6 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -10.40 | 300.55 | -28.50 | 100.72 | 0.4796 | -804.0 | -598.6 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -15.50 | 299.46 | -29.58 | 110.51 | 0.5099 | -628.0 | -417.3 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -15.12 | 298.04 | -31.00 | 109.15 | 0.5284 | -307.0 | -297.2 | |
| 0.00 | 1.85 | 0.00 | 1.08 | -14.28 | 297.67 | -31.37 | 107.44 | 0.5309 | -570.0 | -507.3 | |
| 0.00 | 1.67 | 0.00 | 0.99 | -14.69 | 296.28 | -32.76 | 107.68 | 0.5515 | -221.0 | -172.6 | |
| 0.00 | 3.70 | 0.00 | 2.20 | -13.87 | 295.83 | -33.22 | 106.07 | 0.5556 | -638.0 | -600.0 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -12.01 | 295.71 | -33.34 | 102.71 | 0.5532 | -538.0 | -561.7 | |
| 0.00 | 2.11 | 0.00 | 1.28 | -13.83 | 294.11 | -34.93 | 105.51 | 0.5792 | -717.0 | -578.3 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -15.57 | 293.06 | -35.98 | 108.12 | 0.5978 | -531.0 | -437.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
