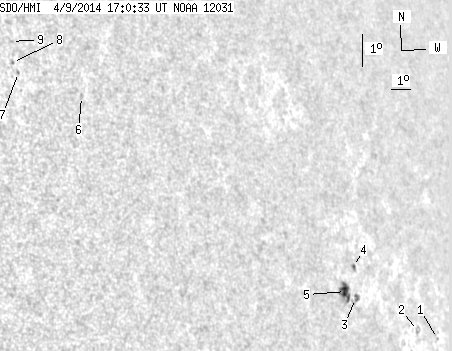

SDO HMI 2014-04-09 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.69 | 34.71 | 9.35 | 32.92 | 3.09 | 26.72 | 57.68 | 277.62 | 0.8506 | 467.0 | 206.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 1.02 | 1.63 | 33.37 | 64.33 | 274.67 | 0.9057 | -376.0 | -344.9 | |
| 0.00 | 3.88 | 0.00 | 4.29 | 1.74 | 32.01 | 62.97 | 275.00 | 0.8956 | -499.0 | -302.8 | |
| 0.00 | 5.37 | 0.00 | 5.27 | 2.36 | 28.17 | 59.13 | 276.30 | 0.8648 | 486.0 | 340.4 | |
| 0.53 | 2.11 | 0.52 | 2.08 | 3.33 | 28.14 | 59.10 | 277.41 | 0.8658 | -516.2 | -456.9 | |
| 9.16 | 16.83 | 8.83 | 16.21 | 2.52 | 27.60 | 58.56 | 276.58 | 0.8600 | 707.9 | 493.2 | |
| 0.00 | 2.03 | 0.00 | 1.50 | 7.42 | 15.05 | 46.00 | 285.71 | 0.7434 | 606.0 | 489.0 | |
| 0.00 | 1.32 | 0.00 | 0.93 | 7.97 | 12.43 | 43.38 | 287.41 | 0.7152 | 541.0 | 428.6 | |
| 0.00 | 1.50 | 0.00 | 1.06 | 8.26 | 12.22 | 43.17 | 287.89 | 0.7138 | 500.0 | 440.6 | |
| 0.00 | 0.79 | 0.00 | 0.56 | 8.91 | 12.27 | 43.22 | 288.74 | 0.7168 | 395.0 | 355.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
