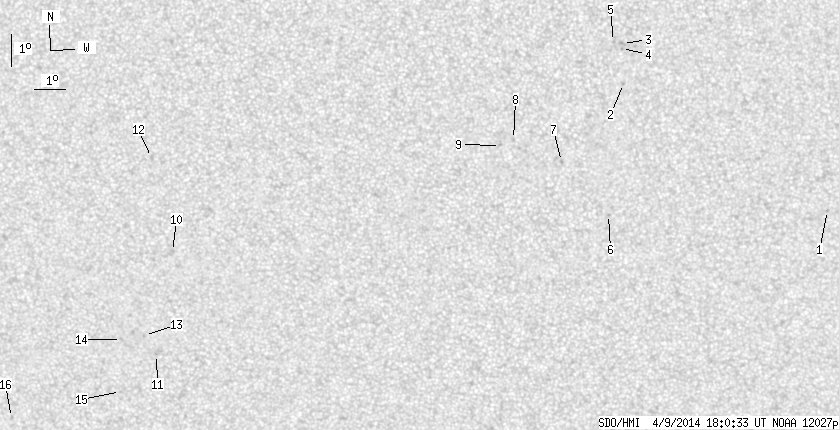

SDO HMI 2014-04-09 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.37 | 0.00 | 10.50 | -19.15 | 324.52 | -3.97 | 172.52 | 0.2636 | 56.6 | 65.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.46 | -19.37 | 338.79 | 10.30 | 215.95 | 0.2886 | -756.0 | -576.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -15.56 | 332.17 | 3.68 | 200.46 | 0.1779 | 798.0 | 651.8 | |
| 0.00 | 2.11 | 0.00 | 1.06 | -14.34 | 332.12 | 3.63 | 202.96 | 0.1581 | 1008.0 | 792.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -14.49 | 332.10 | 3.60 | 202.42 | 0.1604 | 898.0 | 784.0 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -14.28 | 331.84 | 3.35 | 201.50 | 0.1554 | 861.0 | 740.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -19.57 | 331.77 | 3.28 | 192.96 | 0.2417 | 792.0 | 676.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -17.95 | 330.26 | 1.77 | 188.09 | 0.2097 | 894.0 | 734.5 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -17.27 | 328.75 | 0.25 | 181.25 | 0.1961 | 872.0 | 585.6 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -17.46 | 328.34 | -0.15 | 179.26 | 0.1992 | 915.0 | 776.5 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -20.61 | 317.75 | -10.74 | 145.48 | 0.3092 | -846.0 | -656.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -23.82 | 316.96 | -11.53 | 149.26 | 0.3594 | -745.0 | -534.2 | |
| 0.00 | 1.76 | 0.00 | 0.91 | -17.70 | 317.27 | -11.22 | 137.79 | 0.2772 | -866.0 | -560.8 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -23.21 | 316.61 | -11.88 | 147.56 | 0.3542 | -744.0 | -640.5 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -23.32 | 315.83 | -12.66 | 146.12 | 0.3626 | -784.0 | -582.7 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -24.96 | 315.63 | -12.86 | 148.32 | 0.3859 | -609.0 | -547.4 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -25.69 | 311.79 | -16.70 | 142.75 | 0.4296 | -783.0 | -655.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
