SDO HMI 2014-04-09 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.11 | 41.78 | 1.95 | 35.14 | -10.79 | 22.12 | 54.18 | 260.90 | 0.8061 | -50.4 | -85.6 | |
|
previous
or next observation for the same group /

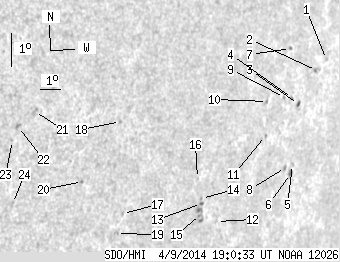

back to the solar disc SDO HMI 2014-04-09 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 1.38 | -7.49 | 27.85 | 59.92 | 264.84 | 0.8634 | 445.0 | 371.2 | |
| 0.00 | 2.47 | 0.00 | 2.37 | -7.87 | 27.34 | 59.40 | 264.42 | 0.8587 | 670.0 | 482.3 | |
| 0.79 | 2.03 | 0.74 | 1.90 | -8.97 | 26.54 | 58.60 | 263.16 | 0.8512 | 544.7 | 488.9 | |
| 0.00 | 1.23 | 0.00 | 1.14 | -8.82 | 26.15 | 58.21 | 263.35 | 0.8477 | 641.0 | 523.0 | |
| 0.00 | 1.32 | 0.00 | 1.24 | -10.78 | 26.70 | 58.76 | 261.03 | 0.8524 | 462.0 | 272.8 | |
| 0.97 | 2.73 | 0.91 | 2.57 | -11.06 | 26.67 | 58.73 | 260.71 | 0.8521 | 554.5 | 400.3 | |
| 0.00 | 1.06 | 0.00 | 0.97 | -7.35 | 25.70 | 57.76 | 265.12 | 0.8441 | -399.0 | -350.2 | |
| 0.00 | 1.94 | 0.00 | 1.80 | -10.90 | 26.32 | 58.39 | 260.89 | 0.8490 | 572.0 | 452.5 | |
| 0.00 | 0.97 | 0.00 | 0.89 | -8.83 | 25.69 | 57.75 | 263.35 | 0.8435 | 476.0 | 323.5 | |
| 0.00 | 1.15 | 0.00 | 1.02 | -9.03 | 24.77 | 56.84 | 263.14 | 0.8348 | 595.0 | 427.2 | |
| 0.00 | 1.06 | 0.00 | 0.95 | -10.05 | 24.92 | 56.99 | 261.91 | 0.8361 | 430.0 | 490.2 | |
| 0.00 | 1.23 | 0.00 | 1.06 | -12.83 | 23.05 | 55.11 | 258.52 | 0.8183 | -321.0 | -216.6 | |
| 0.35 | 1.67 | 0.30 | 1.40 | -12.36 | 22.10 | 54.16 | 259.07 | 0.8087 | -576.2 | -441.4 | |
| 0.00 | 0.79 | 0.00 | 0.66 | -12.21 | 22.06 | 54.12 | 259.25 | 0.8082 | -436.0 | -317.3 | |
| 0.00 | 6.61 | 0.00 | 5.55 | -12.69 | 22.15 | 54.21 | 258.66 | 0.8093 | -586.0 | -526.1 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -11.63 | 21.68 | 53.74 | 259.96 | 0.8043 | 441.0 | 450.0 | |
| 0.00 | 1.15 | 0.00 | 0.88 | -12.97 | 18.28 | 50.35 | 258.10 | 0.7690 | -350.0 | -343.5 | |
| 0.00 | 1.23 | 0.00 | 0.94 | -10.24 | 17.52 | 49.58 | 261.66 | 0.7595 | -524.0 | -411.4 | |
| 0.00 | 1.76 | 0.00 | 1.36 | -13.60 | 18.17 | 50.23 | 257.28 | 0.7682 | -528.0 | -454.5 | |
| 0.00 | 1.15 | 0.00 | 0.85 | -12.16 | 16.18 | 48.24 | 259.04 | 0.7451 | -700.0 | -562.2 | |
| 0.00 | 3.26 | 0.00 | 2.30 | -10.23 | 13.61 | 45.67 | 261.56 | 0.7140 | -383.0 | -468.1 | |
| 0.00 | 2.56 | 0.00 | 1.78 | -10.73 | 13.00 | 45.07 | 260.82 | 0.7069 | -693.0 | -555.7 | |
| 0.00 | 1.15 | 0.00 | 0.80 | -11.16 | 12.83 | 44.89 | 260.19 | 0.7050 | -682.0 | -449.1 | |
| 0.00 | 1.59 | 0.00 | 1.11 | -13.05 | 13.23 | 45.29 | 257.56 | 0.7113 | -496.0 | -336.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
