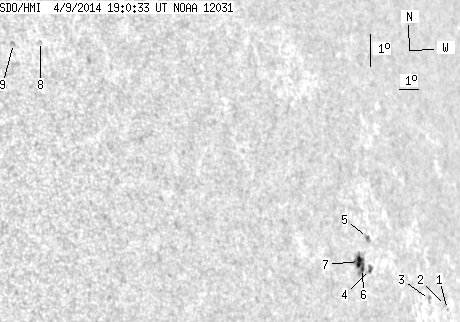

SDO HMI 2014-04-09 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.45 | 30.32 | 8.48 | 30.14 | 2.77 | 27.37 | 59.43 | 276.87 | 0.8661 | 339.5 | 189.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 1.06 | 1.58 | 33.34 | 65.40 | 274.47 | 0.9134 | -350.0 | -286.5 | |
| 0.00 | 0.62 | 0.00 | 0.74 | 1.69 | 33.20 | 65.26 | 274.61 | 0.9125 | -374.0 | -380.0 | |
| 0.00 | 2.11 | 0.00 | 2.44 | 1.76 | 32.07 | 64.13 | 274.85 | 0.9044 | -494.0 | -328.9 | |
| 1.67 | 3.44 | 1.70 | 3.49 | 2.32 | 28.27 | 60.33 | 276.05 | 0.8750 | 353.7 | 288.1 | |
| 0.70 | 2.56 | 0.72 | 2.60 | 3.28 | 28.17 | 60.23 | 277.16 | 0.8754 | -505.6 | -441.0 | |
| 1.50 | 17.80 | 1.50 | 17.74 | 2.30 | 27.78 | 59.84 | 276.12 | 0.8709 | 631.6 | 400.2 | |
| 4.58 | -6.00 | 4.56 | -6.00 | 2.50 | 27.61 | 59.68 | 276.37 | 0.8697 | 731.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 7.96 | 12.46 | 44.52 | 286.96 | 0.7283 | 596.0 | 471.8 | |
| 0.00 | 1.85 | 0.00 | 1.31 | 7.81 | 11.30 | 43.36 | 287.21 | 0.7144 | 678.0 | 599.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
