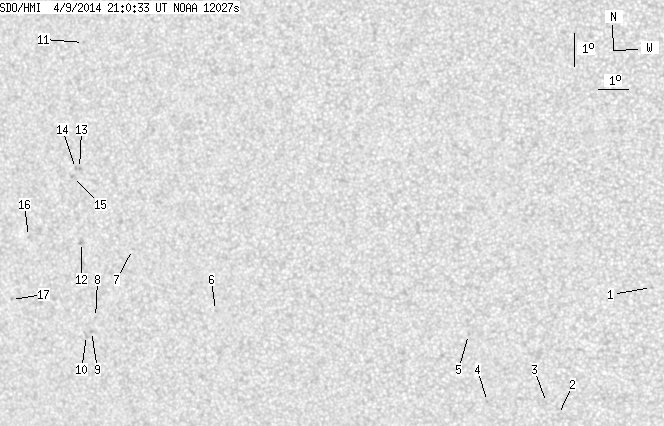

SDO HMI 2014-04-09 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.49 | 0.00 | 10.56 | -14.90 | 298.66 | -28.17 | 111.50 | 0.4908 | -362.3 | -349.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.63 | -16.15 | 314.85 | -11.98 | 131.78 | 0.2686 | 716.0 | 504.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -19.97 | 311.52 | -15.31 | 134.59 | 0.3500 | -6.0 | -6.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -19.59 | 311.16 | -15.67 | 133.13 | 0.3502 | -7.0 | -7.7 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -19.50 | 309.21 | -17.62 | 129.80 | 0.3731 | 572.0 | 489.1 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -17.42 | 308.80 | -18.03 | 124.47 | 0.3597 | 651.0 | 472.5 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -16.35 | 300.35 | -26.49 | 113.94 | 0.4701 | -723.0 | -646.0 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -14.36 | 297.71 | -29.12 | 108.53 | 0.4992 | -593.0 | -478.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -16.36 | 296.06 | -30.77 | 111.53 | 0.5298 | -691.0 | -552.6 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -16.77 | 295.84 | -30.99 | 112.18 | 0.5345 | -791.0 | -686.2 | |
| 0.00 | 2.64 | 0.00 | 1.55 | -16.89 | 295.64 | -31.20 | 112.28 | 0.5377 | -431.0 | -393.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -8.05 | 296.71 | -30.13 | 95.69 | 0.5014 | -646.0 | -545.1 | |
| 0.00 | 2.73 | 0.00 | 1.59 | -14.06 | 295.93 | -30.90 | 107.21 | 0.5236 | -511.0 | -411.4 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -11.82 | 296.17 | -30.66 | 103.03 | 0.5144 | -872.0 | -760.2 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -11.82 | 296.03 | -30.80 | 102.98 | 0.5164 | -710.0 | -570.6 | |
| 0.00 | 1.41 | 0.00 | 0.82 | -12.05 | 295.89 | -30.94 | 103.39 | 0.5189 | -758.0 | -517.2 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -13.77 | 294.04 | -32.79 | 106.03 | 0.5494 | -636.0 | -551.0 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -15.64 | 293.09 | -33.75 | 109.00 | 0.5679 | -723.0 | -549.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
