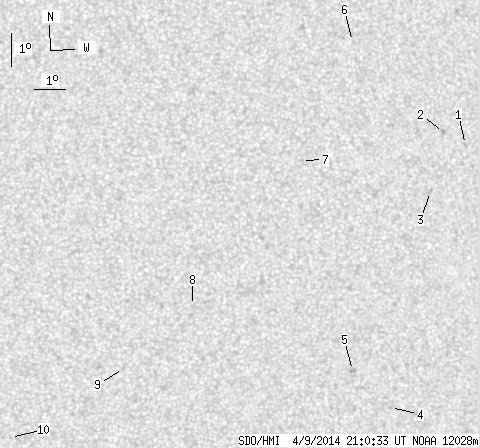

SDO HMI 2014-04-09 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.00 | 16.74 | 1.58 | 9.03 | -18.43 | 346.51 | 19.68 | 234.92 | 0.3976 | -408.6 | -476.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.77 | -14.73 | 350.65 | 23.82 | 247.72 | 0.4239 | -835.0 | -625.6 | |
| 0.00 | 2.29 | 0.00 | 1.24 | -14.39 | 349.87 | 23.04 | 247.92 | 0.4108 | -775.0 | -620.5 | |
| 0.00 | 2.29 | 0.00 | 1.25 | -16.20 | 349.64 | 22.81 | 243.61 | 0.4173 | -786.0 | -636.5 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -22.91 | 349.24 | 22.41 | 229.70 | 0.4624 | -792.0 | -623.7 | |
| 0.00 | 3.08 | 0.00 | 1.69 | -21.80 | 347.73 | 20.90 | 229.95 | 0.4345 | -715.0 | -649.7 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.75 | 346.62 | 19.78 | 252.26 | 0.3495 | -9.0 | -13.4 | |
| 1.06 | 1.06 | 0.56 | 0.56 | -15.41 | 345.25 | 18.42 | 241.08 | 0.3495 | -5.1 | 0.0 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -19.95 | 342.09 | 15.26 | 225.37 | 0.3491 | 2.0 | 1.8 | |
| 1.94 | 2.82 | 1.02 | 1.49 | -21.96 | 340.00 | 13.16 | 217.31 | 0.3500 | -3.7 | -4.5 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -24.19 | 336.42 | 9.59 | 205.88 | 0.3497 | 2.0 | -10.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
