SDO HMI 2014-04-09 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.22 | 29.16 | 7.49 | 29.78 | 2.82 | 27.09 | 60.26 | 276.80 | 0.8728 | 282.5 | 134.5 | |
|
previous
or next observation for the same group /

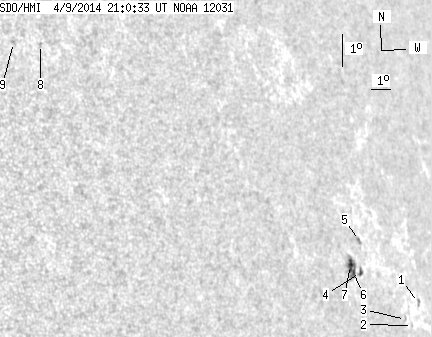

back to the solar disc SDO HMI 2014-04-09 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.56 | 0.00 | 3.07 | 1.75 | 32.12 | 65.29 | 274.67 | 0.9128 | -383.0 | -246.1 | |
| 0.00 | 0.26 | 0.00 | 0.31 | 1.01 | 31.65 | 64.82 | 273.93 | 0.9087 | -380.0 | -296.7 | |
| 0.00 | 1.41 | 0.00 | 1.63 | 1.15 | 31.16 | 64.33 | 274.14 | 0.9053 | -440.0 | -397.6 | |
| 1.32 | 3.17 | 1.39 | 3.33 | 2.30 | 28.24 | 61.41 | 275.86 | 0.8839 | 299.6 | 228.0 | |
| 0.00 | 2.73 | 0.00 | 2.88 | 3.27 | 28.27 | 61.43 | 276.94 | 0.8852 | -637.0 | -445.2 | |
| 1.23 | 15.42 | 1.28 | 15.93 | 2.26 | 27.80 | 60.96 | 275.88 | 0.8802 | 614.0 | 410.3 | |
| 4.67 | -6.00 | 4.82 | -6.00 | 2.45 | 27.62 | 60.79 | 276.13 | 0.8790 | 660.9 | 999999 | |
| 0.00 | 1.85 | 0.00 | 1.36 | 7.93 | 12.53 | 45.70 | 286.48 | 0.7415 | 587.0 | 427.0 | |
| 0.00 | 1.76 | 0.00 | 1.27 | 7.90 | 11.36 | 44.53 | 286.88 | 0.7282 | 676.0 | 568.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
