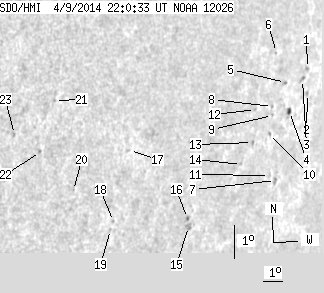

SDO HMI 2014-04-09 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.29 | 33.41 | 2.21 | 30.62 | -10.12 | 23.96 | 57.68 | 261.73 | 0.8408 | 52.3 | 102.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 1.62 | -7.51 | 27.66 | 61.38 | 264.74 | 0.8759 | 501.0 | 423.9 | |
| 0.00 | 1.32 | 0.00 | 1.35 | -8.25 | 27.85 | 61.57 | 263.88 | 0.8772 | 338.0 | 267.9 | |
| 0.00 | 2.20 | 0.00 | 2.23 | -7.86 | 27.43 | 61.15 | 264.34 | 0.8739 | 536.0 | 385.0 | |
| 1.76 | 3.70 | 1.75 | 3.67 | -8.88 | 26.88 | 60.60 | 263.19 | 0.8689 | 427.0 | 408.3 | |
| 0.00 | 0.97 | 0.00 | 0.95 | -8.05 | 26.41 | 60.13 | 264.18 | 0.8651 | 446.0 | 418.0 | |
| 0.00 | 0.53 | 0.00 | 0.51 | -7.20 | 25.67 | 59.39 | 265.20 | 0.8590 | -456.0 | -368.3 | |
| 0.00 | 2.64 | 0.00 | 2.60 | -11.00 | 26.66 | 60.38 | 260.75 | 0.8666 | 555.0 | 412.2 | |
| 0.00 | 1.06 | 0.00 | 1.02 | -8.83 | 25.82 | 59.54 | 263.30 | 0.8597 | 438.0 | 329.1 | |
| 0.00 | 1.06 | 0.00 | 1.02 | -9.09 | 25.89 | 59.61 | 262.98 | 0.8602 | 436.0 | 416.7 | |
| 0.00 | 1.32 | 0.00 | 1.28 | -9.64 | 25.86 | 59.58 | 262.35 | 0.8599 | 381.0 | 355.3 | |
| 0.00 | 1.15 | 0.00 | 1.12 | -10.89 | 26.25 | 59.97 | 260.89 | 0.8631 | 469.0 | 425.8 | |
| 0.00 | 0.97 | 0.00 | 0.91 | -9.00 | 24.85 | 58.57 | 263.12 | 0.8510 | 494.0 | 423.4 | |
| 0.00 | 1.59 | 0.00 | 1.49 | -10.00 | 24.95 | 58.67 | 261.95 | 0.8516 | 430.0 | 421.4 | |
| 0.00 | 0.62 | 0.00 | 0.57 | -10.70 | 24.51 | 58.23 | 261.12 | 0.8476 | 542.0 | 475.6 | |
| 0.00 | 4.05 | 0.00 | 3.54 | -12.80 | 22.17 | 55.89 | 258.59 | 0.8258 | -573.0 | -427.4 | |
| 0.53 | 1.85 | 0.46 | 1.61 | -12.57 | 22.04 | 55.76 | 258.87 | 0.8245 | -513.7 | -441.5 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -10.79 | 18.49 | 52.21 | 260.99 | 0.7882 | -487.0 | -434.1 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -12.97 | 18.27 | 51.99 | 258.21 | 0.7867 | -427.0 | -339.1 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -13.22 | 18.20 | 51.92 | 257.89 | 0.7860 | -394.0 | -325.9 | |
| 0.00 | 0.88 | 0.00 | 0.67 | -12.19 | 16.10 | 49.82 | 259.09 | 0.7628 | -378.0 | -320.8 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -9.57 | 14.63 | 48.35 | 262.52 | 0.7454 | -415.0 | -383.3 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -11.15 | 14.30 | 48.02 | 260.39 | 0.7421 | -588.0 | -512.0 | |
| 0.00 | 1.85 | 0.00 | 1.33 | -10.73 | 13.04 | 46.76 | 260.91 | 0.7272 | -580.0 | -444.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
