SDO HMI 2014-04-09 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.78 | 259.75 | 34.81 | 201.80 | 12.83 | 13.28 | 47.00 | 292.17 | 0.7723 | -700.1 | -290.2 | |
|
previous
or next observation for the same group /

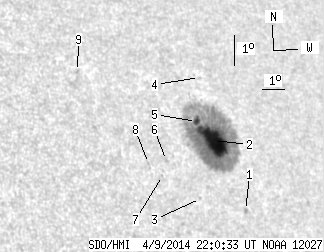

back to the solar disc SDO HMI 2014-04-09 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.85 | 0.00 | 1.45 | 10.68 | 14.35 | 48.07 | 289.10 | 0.7759 | -649.0 | -620.2 | |
| 41.34 | 251.81 | 32.16 | 195.84 | 12.80 | 13.38 | 47.10 | 292.09 | 0.7732 | -890.2 | -304.2 | |
| 0.00 | 0.97 | 0.00 | 0.73 | 10.90 | 12.37 | 46.09 | 290.15 | 0.7558 | 451.0 | 323.5 | |
| 0.00 | 1.15 | 0.00 | 0.90 | 14.79 | 13.27 | 46.99 | 294.55 | 0.7796 | 391.0 | 314.1 | |
| 3.44 | -2.00 | 2.65 | -2.00 | 13.35 | 12.75 | 46.47 | 293.04 | 0.7688 | -716.7 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 12.00 | 11.10 | 44.82 | 292.06 | 0.7463 | -316.0 | -210.0 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 11.51 | 10.83 | 44.55 | 291.56 | 0.7414 | 349.0 | 333.2 | |
| 0.00 | 1.06 | 0.00 | 0.77 | 11.84 | 10.29 | 44.01 | 292.23 | 0.7369 | 447.0 | 312.2 | |
| 0.00 | 1.76 | 0.00 | 1.26 | 14.58 | 7.90 | 41.62 | 296.90 | 0.7231 | 585.0 | 493.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
