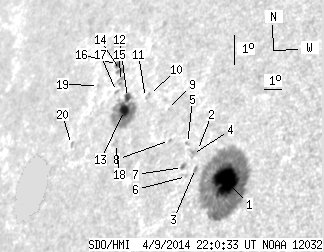

SDO HMI 2014-04-09 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.43 | 335.80 | 51.49 | 294.96 | 11.96 | 273.41 | -52.87 | 71.03 | 0.8256 | -429.0 | -147.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.57 | 245.64 | 35.59 | 205.74 | 11.13 | 275.21 | -51.07 | 71.42 | 0.8075 | -1084.4 | -310.2 | |
| 0.00 | 0.97 | 0.00 | 0.85 | 12.22 | 273.47 | -52.81 | 70.71 | 0.8271 | -56.0 | -74.2 | |
| 0.00 | 2.12 | 0.00 | 1.84 | 11.65 | 273.52 | -52.76 | 71.36 | 0.8250 | -539.0 | -366.3 | |
| 0.00 | 3.00 | 0.00 | 2.64 | 12.12 | 273.24 | -53.04 | 70.91 | 0.8289 | -608.0 | -407.4 | |
| 0.00 | 1.41 | 0.00 | 1.26 | 12.49 | 272.87 | -53.41 | 70.59 | 0.8333 | -437.0 | -366.5 | |
| 0.00 | 0.97 | 0.00 | 0.85 | 11.44 | 273.12 | -53.16 | 71.74 | 0.8282 | -230.0 | -329.8 | |
| 0.79 | 2.64 | 0.70 | 2.34 | 11.75 | 272.83 | -53.45 | 71.47 | 0.8317 | -278.9 | -207.8 | |
| 0.00 | 1.41 | 0.00 | 1.29 | 12.68 | 271.87 | -54.41 | 70.71 | 0.8427 | -275.0 | -234.8 | |
| 0.00 | 0.44 | 0.00 | 0.41 | 13.69 | 271.42 | -54.86 | 69.69 | 0.8492 | -280.0 | -277.4 | |
| 0.00 | 1.23 | 0.00 | 1.19 | 14.28 | 270.22 | -56.06 | 69.41 | 0.8608 | 453.0 | 470.1 | |
| 0.00 | 0.79 | 0.00 | 0.77 | 14.20 | 270.03 | -56.25 | 69.56 | 0.8623 | 536.0 | 521.8 | |
| 3.61 | 55.79 | 3.62 | 55.74 | 14.30 | 268.97 | -57.31 | 69.78 | 0.8711 | 613.9 | 285.4 | |
| 7.84 | -12.00 | 7.83 | -12.00 | 13.89 | 268.95 | -57.33 | 70.24 | 0.8703 | 765.3 | 999999 | |
| 1.59 | 6.87 | 1.64 | 7.14 | 15.23 | 268.16 | -58.12 | 68.99 | 0.8796 | 587.3 | 417.8 | |
| 0.00 | 4.76 | 0.00 | 4.88 | 14.86 | 268.32 | -57.96 | 69.35 | 0.8775 | 735.0 | 545.7 | |
| 2.03 | -14.00 | 2.11 | -14.00 | 15.44 | 267.89 | -58.39 | 68.84 | 0.8822 | 437.2 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.54 | 14.56 | 268.22 | -58.06 | 69.72 | 0.8777 | 299.0 | 207.6 | |
| 0.00 | 3.17 | 0.00 | 3.16 | 12.86 | 268.82 | -57.46 | 71.42 | 0.8691 | 411.0 | 422.2 | |
| 0.00 | 1.15 | 0.00 | 1.22 | 14.86 | 267.00 | -59.28 | 69.74 | 0.8877 | 245.0 | 228.9 | |
| 0.00 | 1.94 | 0.00 | 2.10 | 13.08 | 266.09 | -60.19 | 71.93 | 0.8909 | 343.0 | 313.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
