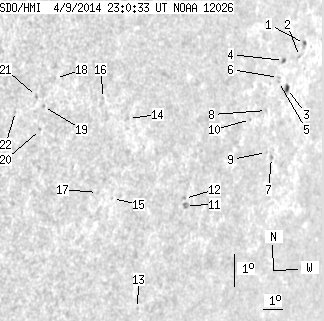

SDO HMI 2014-04-09 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.52 | 27.52 | 3.57 | 25.40 | -9.92 | 23.62 | 57.89 | 261.95 | 0.8423 | -41.9 | 34.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.79 | 3.44 | 0.82 | 3.57 | -7.43 | 27.68 | 61.95 | 264.80 | 0.8807 | 430.7 | 409.5 | |
| 0.00 | 1.15 | 0.00 | 1.18 | -7.84 | 27.46 | 61.73 | 264.34 | 0.8787 | 357.0 | 358.2 | |
| 1.85 | 3.61 | 1.87 | 3.66 | -8.86 | 26.96 | 61.24 | 263.20 | 0.8743 | 437.3 | 372.4 | |
| 0.88 | 1.94 | 0.88 | 1.94 | -8.05 | 26.50 | 60.77 | 264.15 | 0.8706 | 415.0 | 322.8 | |
| 0.00 | 1.06 | 0.00 | 1.05 | -8.70 | 26.35 | 60.62 | 263.40 | 0.8691 | 290.0 | 341.6 | |
| 0.00 | 1.06 | 0.00 | 1.05 | -8.58 | 26.32 | 60.59 | 263.54 | 0.8689 | 483.0 | 448.5 | |
| 0.00 | 1.59 | 0.00 | 1.59 | -10.99 | 26.62 | 60.89 | 260.76 | 0.8710 | 531.0 | 368.7 | |
| 0.00 | 0.97 | 0.00 | 0.95 | -9.62 | 25.87 | 60.14 | 262.35 | 0.8648 | 443.0 | 365.5 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -10.87 | 26.26 | 60.54 | 260.90 | 0.8679 | 502.0 | 480.3 | |
| 0.00 | 0.53 | 0.00 | 0.51 | -9.97 | 25.00 | 59.27 | 261.96 | 0.8571 | 459.0 | 450.0 | |
| 0.00 | 3.09 | 0.00 | 2.73 | -12.85 | 22.15 | 56.42 | 258.54 | 0.8309 | -509.0 | -415.8 | |
| 0.00 | 0.97 | 0.00 | 0.86 | -12.64 | 22.02 | 56.29 | 258.79 | 0.8297 | -634.0 | -525.3 | |
| 0.00 | 0.88 | 0.00 | 0.76 | -16.13 | 20.73 | 55.00 | 254.47 | 0.8189 | 51.0 | 116.6 | |
| 0.00 | 0.79 | 0.00 | 0.64 | -10.50 | 18.43 | 52.71 | 261.36 | 0.7934 | -461.0 | -380.7 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -12.95 | 18.29 | 52.56 | 258.26 | 0.7926 | -394.0 | -364.0 | |
| 0.00 | 0.53 | 0.00 | 0.42 | -10.01 | 17.07 | 51.34 | 261.98 | 0.7789 | -498.0 | -454.5 | |
| 0.00 | 0.79 | 0.00 | 0.63 | -12.83 | 17.49 | 51.76 | 258.37 | 0.7842 | -361.0 | -397.8 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -9.59 | 14.69 | 48.96 | 262.51 | 0.7525 | -562.0 | -475.3 | |
| 0.00 | 1.15 | 0.00 | 0.85 | -10.47 | 14.31 | 48.58 | 261.33 | 0.7483 | -577.0 | -532.7 | |
| 0.00 | 1.15 | 0.00 | 0.85 | -11.16 | 14.32 | 48.59 | 260.39 | 0.7486 | -546.0 | -519.8 | |
| 0.00 | 1.15 | 0.00 | 0.85 | -10.19 | 13.93 | 48.20 | 261.68 | 0.7439 | -451.0 | -388.3 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -10.71 | 13.08 | 47.35 | 260.95 | 0.7341 | -605.0 | -543.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
