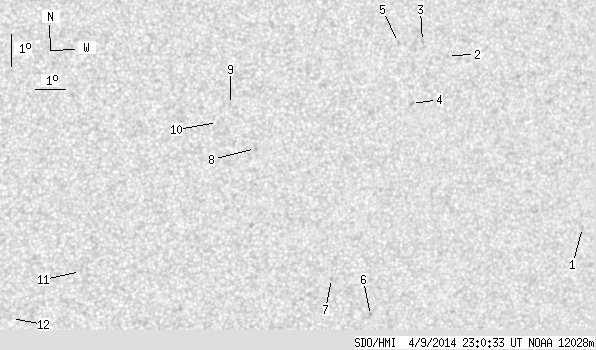

SDO HMI 2014-04-09 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.39 | 0.00 | 7.84 | -18.26 | 347.16 | 21.44 | 236.98 | 0.4176 | -473.8 | -417.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.67 | -19.77 | 356.31 | 30.58 | 242.28 | 0.5429 | -630.0 | -438.6 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -14.74 | 350.68 | 24.95 | 248.44 | 0.4405 | -713.0 | -617.9 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -14.36 | 349.78 | 24.05 | 248.71 | 0.4256 | -585.0 | -495.3 | |
| 0.00 | 1.94 | 0.00 | 1.06 | -16.25 | 349.64 | 23.91 | 244.41 | 0.4332 | -669.0 | -538.4 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -14.42 | 348.98 | 23.25 | 248.01 | 0.4140 | -716.0 | -585.9 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -22.84 | 349.23 | 23.50 | 231.01 | 0.4747 | -749.0 | -651.7 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -21.74 | 347.67 | 21.94 | 231.30 | 0.4466 | -774.0 | -622.6 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -17.81 | 344.56 | 18.83 | 235.67 | 0.3737 | -828.0 | -688.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -16.49 | 343.59 | 17.87 | 237.59 | 0.3500 | -14.0 | 2.9 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -17.06 | 343.22 | 17.49 | 235.68 | 0.3495 | -5.0 | -1.7 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -21.77 | 339.14 | 13.42 | 218.17 | 0.3502 | 3.0 | 2.6 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -23.28 | 336.98 | 11.26 | 210.97 | 0.3499 | -5.0 | -2.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
