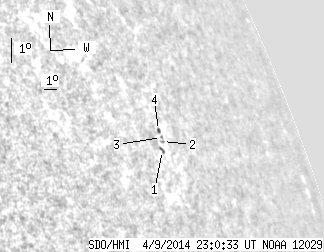

SDO HMI 2014-04-09 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 6.17 | 0.71 | 8.28 | 17.64 | 30.68 | 64.96 | 291.70 | 0.9308 | -321.1 | -235.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-09 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.94 | 0.00 | 2.58 | 17.31 | 30.55 | 64.82 | 291.39 | 0.9295 | -382.0 | -271.8 | |
| 0.00 | 1.59 | 0.00 | 2.13 | 17.62 | 30.76 | 65.04 | 291.66 | 0.9313 | -304.0 | -204.5 | |
| 0.00 | 0.97 | 0.00 | 1.31 | 17.75 | 30.78 | 65.05 | 291.79 | 0.9316 | -292.0 | -180.1 | |
| 0.53 | 1.67 | 0.71 | 2.26 | 17.97 | 30.71 | 64.98 | 292.04 | 0.9315 | -300.5 | -264.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
