SDO HMI 2014-04-10 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.09 | 27.51 | 3.18 | 26.11 | -9.78 | 24.08 | 58.91 | 262.11 | 0.8517 | 52.6 | 70.1 | |
|
previous
or next observation for the same group /

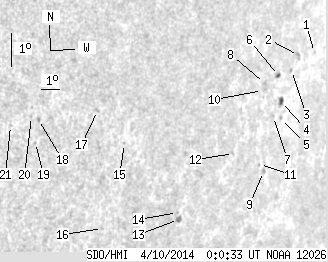

back to the solar disc SDO HMI 2014-04-10 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.29 | -7.18 | 28.82 | 63.64 | 264.98 | 0.8943 | 220.0 | 270.3 | |
| 0.00 | 3.09 | 0.00 | 3.27 | -7.36 | 27.78 | 62.61 | 264.83 | 0.8861 | 616.0 | 434.1 | |
| 0.00 | 1.23 | 0.00 | 1.29 | -7.85 | 27.44 | 62.27 | 264.30 | 0.8831 | 440.0 | 347.6 | |
| 2.03 | 3.53 | 2.10 | 3.64 | -8.83 | 27.06 | 61.88 | 263.21 | 0.8796 | 526.1 | 401.2 | |
| 0.00 | 1.23 | 0.00 | 1.28 | -9.33 | 27.14 | 61.97 | 262.62 | 0.8802 | 267.0 | 296.4 | |
| 1.06 | 1.76 | 1.08 | 1.80 | -8.07 | 26.66 | 61.48 | 264.08 | 0.8766 | 410.8 | 353.9 | |
| 0.00 | 0.62 | 0.00 | 0.63 | -9.32 | 26.68 | 61.51 | 262.66 | 0.8764 | 323.0 | 375.6 | |
| 0.00 | 0.97 | 0.00 | 0.97 | -8.39 | 25.85 | 60.68 | 263.76 | 0.8697 | 170.0 | 154.8 | |
| 0.00 | 1.94 | 0.00 | 1.97 | -11.00 | 26.59 | 61.42 | 260.74 | 0.8754 | 558.0 | 398.7 | |
| 0.00 | 0.71 | 0.00 | 0.70 | -8.61 | 25.79 | 60.61 | 263.51 | 0.8691 | 180.0 | 143.4 | |
| 0.00 | 0.53 | 0.00 | 0.53 | -10.81 | 26.27 | 61.10 | 260.96 | 0.8727 | 447.0 | 418.8 | |
| 0.00 | 0.97 | 0.00 | 0.93 | -10.63 | 24.60 | 59.42 | 261.19 | 0.8583 | 427.0 | 393.7 | |
| 0.00 | 3.35 | 0.00 | 3.01 | -12.86 | 22.12 | 56.94 | 258.54 | 0.8359 | -529.0 | -406.0 | |
| 0.00 | 0.97 | 0.00 | 0.87 | -12.66 | 21.99 | 56.81 | 258.78 | 0.8346 | -624.0 | -540.6 | |
| 0.00 | 0.71 | 0.00 | 0.58 | -10.84 | 18.59 | 53.41 | 260.94 | 0.8008 | -404.0 | -370.5 | |
| 0.00 | 0.71 | 0.00 | 0.58 | -13.46 | 18.21 | 53.03 | 257.64 | 0.7977 | -286.0 | -279.0 | |
| 0.00 | 1.59 | 0.00 | 1.26 | -9.96 | 17.01 | 51.84 | 262.03 | 0.7842 | -275.0 | -254.4 | |
| 0.00 | 1.41 | 0.00 | 1.06 | -10.45 | 14.27 | 49.10 | 261.35 | 0.7541 | -539.0 | -478.5 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -11.15 | 14.29 | 49.11 | 260.43 | 0.7545 | -508.0 | -446.3 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -10.39 | 13.93 | 48.76 | 261.43 | 0.7503 | -345.0 | -291.0 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -10.73 | 13.04 | 47.86 | 260.94 | 0.7401 | -521.0 | -559.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
