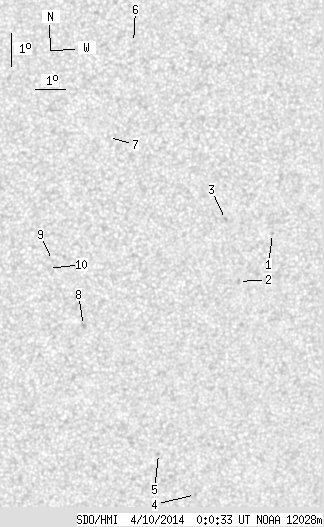

SDO HMI 2014-04-10 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.10 | 0.00 | 6.06 | -16.55 | 347.44 | 22.26 | 242.66 | 0.4151 | -458.9 | -523.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.54 | -14.78 | 350.65 | 25.48 | 248.68 | 0.4483 | -737.0 | -536.4 | |
| 0.00 | 1.76 | 0.00 | 0.97 | -16.29 | 349.68 | 24.50 | 244.79 | 0.4418 | -777.0 | -643.0 | |
| 0.00 | 1.76 | 0.00 | 0.96 | -14.42 | 349.00 | 23.83 | 248.40 | 0.4226 | -746.0 | -605.5 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -22.91 | 349.23 | 24.05 | 231.46 | 0.4819 | -693.0 | -597.5 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -21.68 | 347.70 | 22.53 | 232.06 | 0.4533 | -741.0 | -668.2 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -9.20 | 345.52 | 20.34 | 259.74 | 0.3502 | 13.0 | 4.8 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -12.09 | 344.90 | 19.72 | 251.27 | 0.3499 | -2.0 | -1.0 | |
| 0.00 | 2.56 | 0.00 | 1.37 | -17.82 | 344.61 | 19.43 | 236.41 | 0.3819 | -894.0 | -670.1 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -15.87 | 343.38 | 18.21 | 239.61 | 0.3499 | -19.0 | -7.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -16.12 | 343.27 | 18.10 | 238.84 | 0.3503 | 7.0 | 1.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
