SDO HMI 2014-04-10 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.75 | 339.49 | 48.95 | 286.27 | 11.91 | 273.47 | -51.15 | 70.53 | 0.8094 | -445.3 | -186.5 | |
|
previous
or next observation for the same group /

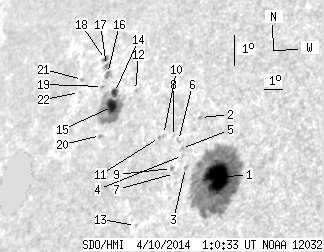

back to the solar disc SDO HMI 2014-04-10 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.59 | 254.04 | 34.38 | 205.26 | 11.10 | 275.14 | -49.48 | 70.91 | 0.7917 | -1092.6 | -342.2 | |
| 0.00 | 0.97 | 0.00 | 0.82 | 13.10 | 273.81 | -50.82 | 69.00 | 0.8109 | 319.0 | 332.7 | |
| 0.00 | 1.06 | 0.00 | 0.89 | 11.56 | 273.49 | -51.14 | 70.94 | 0.8093 | -467.0 | -355.9 | |
| 0.00 | 0.88 | 0.00 | 0.75 | 11.95 | 273.24 | -51.39 | 70.56 | 0.8129 | -520.0 | -429.9 | |
| 0.00 | 0.97 | 0.00 | 0.82 | 12.18 | 273.13 | -51.50 | 70.32 | 0.8146 | -547.0 | -482.0 | |
| 0.00 | 1.59 | 0.00 | 1.36 | 12.45 | 272.90 | -51.72 | 70.08 | 0.8175 | -474.0 | -414.8 | |
| 0.00 | 0.26 | 0.00 | 0.22 | 11.41 | 272.98 | -51.64 | 71.28 | 0.8138 | -439.0 | -409.3 | |
| 0.00 | 1.06 | 0.00 | 0.91 | 12.60 | 272.61 | -52.02 | 70.01 | 0.8207 | -210.0 | -122.0 | |
| 0.00 | 1.32 | 0.00 | 1.13 | 11.58 | 272.79 | -51.84 | 71.15 | 0.8161 | -297.0 | -255.5 | |
| 0.00 | 0.53 | 0.00 | 0.46 | 12.71 | 272.07 | -52.55 | 70.06 | 0.8260 | -223.0 | -246.5 | |
| 0.00 | 1.23 | 0.00 | 1.08 | 12.63 | 271.89 | -52.74 | 70.22 | 0.8275 | -320.0 | -243.4 | |
| 0.00 | 0.71 | 0.00 | 0.65 | 14.27 | 270.10 | -54.53 | 68.93 | 0.8479 | 649.0 | 546.1 | |
| 0.00 | 0.97 | 0.00 | 0.85 | 9.93 | 271.38 | -53.25 | 73.54 | 0.8251 | -416.0 | -367.7 | |
| 3.70 | 58.64 | 3.55 | 56.02 | 14.32 | 268.93 | -55.69 | 69.26 | 0.8579 | 585.5 | 249.3 | |
| 8.82 | -14.00 | 8.41 | -14.00 | 13.87 | 268.99 | -55.63 | 69.75 | 0.8563 | 786.3 | 999999 | |
| 0.62 | 4.59 | 0.60 | 4.48 | 14.98 | 268.29 | -56.34 | 68.73 | 0.8649 | 620.4 | 584.7 | |
| 0.79 | 3.26 | 0.78 | 3.22 | 15.25 | 268.12 | -56.51 | 68.48 | 0.8669 | 619.0 | 525.4 | |
| 1.23 | 2.82 | 1.23 | 2.80 | 15.45 | 267.98 | -56.65 | 68.30 | 0.8685 | 475.2 | 354.3 | |
| 0.00 | 1.59 | 0.00 | 1.56 | 14.58 | 268.16 | -56.46 | 69.21 | 0.8649 | 289.0 | 189.2 | |
| 0.00 | 1.06 | 0.00 | 1.01 | 12.98 | 268.64 | -55.99 | 70.85 | 0.8571 | 505.0 | 441.3 | |
| 0.00 | 1.32 | 0.00 | 1.35 | 14.92 | 266.87 | -57.75 | 69.23 | 0.8760 | 314.0 | 253.5 | |
| 0.00 | 0.62 | 0.00 | 0.63 | 14.50 | 266.87 | -57.76 | 69.69 | 0.8751 | 347.0 | 289.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
