SDO HMI 2014-04-10 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.79 | 19.13 | 7.73 | 21.08 | 2.98 | 26.65 | 62.58 | 276.57 | 0.8915 | 344.4 | 100.5 | |
|
previous
or next observation for the same group /

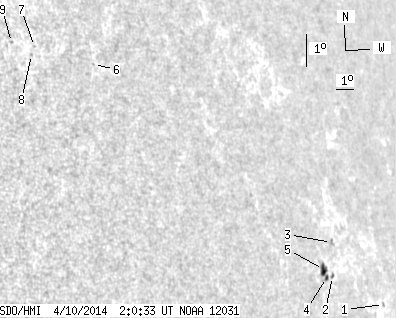

back to the solar disc SDO HMI 2014-04-10 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 1.78 | 1.75 | 32.11 | 68.04 | 274.28 | 0.9312 | -279.0 | -210.3 | |
| 0.62 | 1.76 | 0.72 | 2.04 | 2.23 | 28.32 | 64.25 | 275.34 | 0.9057 | 235.0 | 167.9 | |
| 0.00 | 2.20 | 0.00 | 2.57 | 3.27 | 28.36 | 64.28 | 276.47 | 0.9070 | -524.0 | -446.9 | |
| 1.23 | 10.94 | 1.41 | 12.42 | 2.16 | 27.90 | 63.82 | 275.33 | 0.9025 | 418.1 | 291.4 | |
| 4.94 | -4.00 | 5.60 | -4.00 | 2.39 | 27.71 | 63.64 | 275.60 | 0.9013 | 497.5 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.58 | 7.55 | 15.40 | 51.33 | 284.18 | 0.8005 | 491.0 | 422.8 | |
| 0.00 | 0.26 | 0.00 | 0.21 | 7.89 | 12.66 | 48.59 | 285.43 | 0.7729 | 472.0 | 465.3 | |
| 0.00 | 0.79 | 0.00 | 0.61 | 7.63 | 12.48 | 48.41 | 285.16 | 0.7703 | 416.0 | 374.4 | |
| 0.00 | 1.15 | 0.00 | 0.87 | 7.93 | 11.62 | 47.54 | 285.82 | 0.7618 | 608.0 | 569.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
