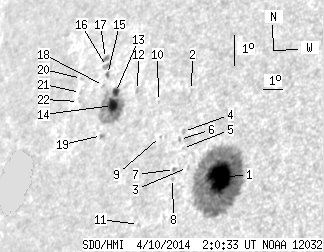

SDO HMI 2014-04-10 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.53 | 342.00 | 47.33 | 284.96 | 11.91 | 273.43 | -50.65 | 70.36 | 0.8044 | -436.4 | -198.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 02:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.54 | 255.04 | 33.15 | 203.72 | 11.10 | 275.11 | -48.97 | 70.73 | 0.7864 | -1115.3 | -356.9 | |
| 0.00 | 0.97 | 0.00 | 0.83 | 14.01 | 272.98 | -51.09 | 68.04 | 0.8163 | -439.0 | -386.6 | |
| 0.00 | 1.23 | 0.00 | 1.02 | 11.55 | 273.47 | -50.60 | 70.77 | 0.8041 | -527.0 | -351.7 | |
| 0.00 | 2.03 | 0.00 | 1.71 | 12.72 | 272.97 | -51.11 | 69.56 | 0.8125 | -379.0 | -273.6 | |
| 0.00 | 0.62 | 0.00 | 0.52 | 12.18 | 273.07 | -51.01 | 70.16 | 0.8099 | -462.0 | -463.1 | |
| 0.00 | 1.15 | 0.00 | 0.97 | 12.48 | 272.84 | -51.24 | 69.89 | 0.8130 | -394.0 | -373.5 | |
| 0.00 | 1.68 | 0.00 | 1.41 | 11.54 | 272.84 | -51.23 | 71.00 | 0.8102 | -308.0 | -235.3 | |
| 0.00 | 1.23 | 0.00 | 1.04 | 11.26 | 272.81 | -51.26 | 71.34 | 0.8097 | -272.0 | -267.6 | |
| 0.00 | 0.71 | 0.00 | 0.61 | 12.66 | 271.84 | -52.24 | 70.02 | 0.8229 | -243.0 | -210.6 | |
| 0.00 | 0.53 | 0.00 | 0.47 | 13.80 | 271.38 | -52.69 | 68.85 | 0.8304 | -383.0 | -300.3 | |
| 0.00 | 1.06 | 0.00 | 0.91 | 9.94 | 271.43 | -52.64 | 73.35 | 0.8194 | -441.0 | -383.8 | |
| 0.00 | 1.59 | 0.00 | 1.45 | 14.26 | 270.13 | -53.94 | 68.76 | 0.8428 | 578.0 | 499.4 | |
| 4.14 | 59.00 | 3.91 | 55.54 | 14.30 | 268.93 | -55.14 | 69.10 | 0.8532 | 625.4 | 254.0 | |
| 8.82 | -13.00 | 8.30 | -13.00 | 13.89 | 268.92 | -55.16 | 69.57 | 0.8523 | 760.6 | 999999 | |
| 0.88 | 2.38 | 0.85 | 2.30 | 14.94 | 268.25 | -55.82 | 68.61 | 0.8605 | 644.9 | 569.8 | |
| 0.00 | 3.44 | 0.00 | 3.35 | 15.20 | 268.09 | -55.99 | 68.36 | 0.8625 | 660.0 | 487.9 | |
| 1.15 | 3.26 | 1.12 | 3.19 | 15.47 | 267.92 | -56.15 | 68.12 | 0.8646 | 469.6 | 368.3 | |
| 0.00 | 1.41 | 0.00 | 1.36 | 14.59 | 268.16 | -55.91 | 69.02 | 0.8604 | 273.0 | 198.8 | |
| 0.00 | 1.85 | 0.00 | 1.74 | 12.97 | 268.64 | -55.44 | 70.70 | 0.8524 | 503.0 | 397.6 | |
| 0.00 | 1.06 | 0.00 | 1.06 | 14.94 | 266.77 | -57.30 | 69.07 | 0.8725 | 240.0 | 233.1 | |
| 0.00 | 1.23 | 0.00 | 1.23 | 14.49 | 266.90 | -57.17 | 69.53 | 0.8704 | 275.0 | 243.4 | |
| 0.00 | 0.53 | 0.00 | 0.53 | 14.20 | 266.90 | -57.18 | 69.85 | 0.8698 | 384.0 | 361.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
