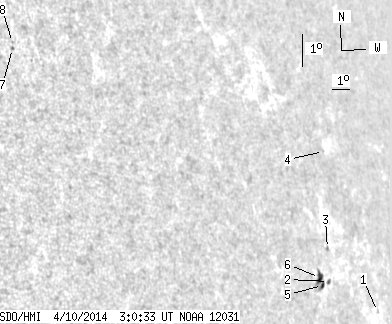

SDO HMI 2014-04-10 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.53 | 20.11 | 7.59 | 22.80 | 2.90 | 26.97 | 63.45 | 276.32 | 0.8985 | 271.9 | 156.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 1.34 | 1.74 | 32.07 | 68.54 | 274.20 | 0.9343 | -331.0 | -246.6 | |
| 0.71 | 2.12 | 0.84 | 2.51 | 2.29 | 28.35 | 64.83 | 275.32 | 0.9100 | 220.6 | 159.9 | |
| 0.00 | 1.59 | 0.00 | 1.89 | 3.30 | 28.39 | 64.86 | 276.41 | 0.9112 | -554.0 | -472.3 | |
| 0.00 | 0.62 | 0.00 | 0.76 | 6.28 | 28.65 | 65.13 | 279.60 | 0.9163 | -271.0 | -266.0 | |
| 1.59 | 12.61 | 1.85 | 14.60 | 2.13 | 27.91 | 64.39 | 275.20 | 0.9066 | 429.6 | 327.3 | |
| 4.23 | -5.00 | 4.90 | -5.00 | 2.35 | 27.72 | 64.20 | 275.48 | 0.9055 | 489.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.09 | 7.95 | 11.67 | 48.14 | 285.64 | 0.7683 | 617.0 | 554.8 | |
| 0.00 | 0.79 | 0.00 | 0.61 | 8.14 | 11.70 | 48.17 | 285.87 | 0.7692 | 583.0 | 584.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
