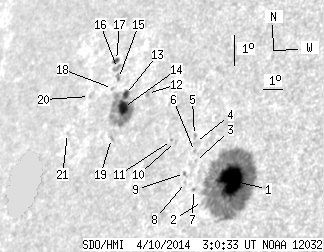

SDO HMI 2014-04-10 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.97 | 337.55 | 49.49 | 277.60 | 11.87 | 273.48 | -50.04 | 70.19 | 0.7984 | -454.9 | -199.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.07 | 253.23 | 35.58 | 200.04 | 11.09 | 275.11 | -48.41 | 70.54 | 0.7807 | -1123.3 | -354.1 | |
| 0.00 | 1.59 | 0.00 | 1.28 | 10.53 | 273.88 | -49.65 | 71.66 | 0.7916 | 150.0 | 126.6 | |
| 0.00 | 0.62 | 0.00 | 0.51 | 11.84 | 273.23 | -50.29 | 70.32 | 0.8019 | -433.0 | -395.6 | |
| 0.00 | 1.50 | 0.00 | 1.25 | 12.45 | 273.08 | -50.45 | 69.65 | 0.8053 | -506.0 | -386.6 | |
| 0.00 | 1.68 | 0.00 | 1.40 | 12.68 | 272.96 | -50.56 | 69.41 | 0.8071 | -384.0 | -312.1 | |
| 0.00 | 1.06 | 0.00 | 0.88 | 12.16 | 273.10 | -50.42 | 69.98 | 0.8042 | -485.0 | -394.2 | |
| 0.00 | 0.97 | 0.00 | 0.79 | 10.95 | 273.35 | -50.17 | 71.34 | 0.7981 | -394.0 | -309.1 | |
| 0.00 | 1.23 | 0.00 | 1.02 | 11.21 | 272.91 | -50.62 | 71.19 | 0.8032 | -309.0 | -281.0 | |
| 0.00 | 1.23 | 0.00 | 1.03 | 11.50 | 272.79 | -50.74 | 70.88 | 0.8053 | -259.0 | -254.7 | |
| 0.00 | 0.97 | 0.00 | 0.83 | 12.56 | 272.06 | -51.46 | 69.87 | 0.8154 | -426.0 | -252.0 | |
| 0.00 | 0.79 | 0.00 | 0.68 | 12.61 | 271.85 | -51.68 | 69.89 | 0.8175 | -267.0 | -186.6 | |
| 0.00 | 1.59 | 0.00 | 1.43 | 14.25 | 270.11 | -53.42 | 68.59 | 0.8381 | 607.0 | 488.6 | |
| 3.79 | 56.71 | 3.53 | 52.67 | 14.32 | 268.91 | -54.61 | 68.91 | 0.8487 | 608.3 | 240.7 | |
| 9.00 | -13.00 | 8.34 | -13.00 | 13.91 | 268.95 | -54.57 | 69.37 | 0.8472 | 805.5 | 999999 | |
| 0.35 | 2.56 | 0.34 | 2.43 | 14.88 | 268.33 | -55.20 | 68.47 | 0.8552 | 665.0 | 566.1 | |
| 0.00 | 4.15 | 0.00 | 3.97 | 15.22 | 268.14 | -55.38 | 68.16 | 0.8576 | 650.0 | 507.8 | |
| 1.76 | 3.09 | 1.70 | 2.97 | 15.49 | 267.98 | -55.55 | 67.91 | 0.8597 | 391.5 | 294.7 | |
| 0.00 | 1.23 | 0.00 | 1.18 | 14.58 | 268.11 | -55.42 | 68.88 | 0.8562 | 194.0 | 89.9 | |
| 0.00 | 1.41 | 0.00 | 1.31 | 12.96 | 268.63 | -54.89 | 70.55 | 0.8476 | 533.0 | 410.0 | |
| 0.00 | 0.88 | 0.00 | 0.87 | 14.44 | 266.88 | -56.65 | 69.42 | 0.8660 | 259.0 | 199.3 | |
| 0.00 | 1.06 | 0.00 | 1.06 | 13.35 | 266.03 | -57.49 | 70.89 | 0.8703 | 367.0 | 262.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
