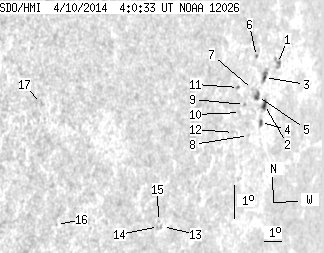

SDO HMI 2014-04-10 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.32 | 37.03 | 8.19 | 40.14 | -8.59 | 26.23 | 63.25 | 263.37 | 0.8898 | 165.6 | 268.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.29 | 0.00 | 6.10 | -7.34 | 27.97 | 64.99 | 264.70 | 0.9045 | 471.0 | 472.2 | |
| 2.82 | 5.91 | 3.18 | 6.65 | -8.64 | 27.42 | 64.44 | 263.29 | 0.8999 | 423.6 | 377.3 | |
| 1.32 | 6.70 | 1.48 | 7.50 | -7.84 | 27.18 | 64.20 | 264.19 | 0.8984 | 408.8 | 477.8 | |
| 1.06 | 3.00 | 1.19 | 3.37 | -9.20 | 27.32 | 64.34 | 262.68 | 0.8990 | 385.5 | 310.9 | |
| 2.12 | 4.50 | 2.34 | 4.97 | -8.45 | 26.87 | 63.89 | 263.53 | 0.8958 | 547.5 | 464.6 | |
| 0.00 | 1.41 | 0.00 | 1.54 | -7.27 | 26.47 | 63.49 | 264.87 | 0.8931 | 29.0 | -80.9 | |
| 0.00 | 1.32 | 0.00 | 1.44 | -8.27 | 26.47 | 63.49 | 263.75 | 0.8927 | 352.0 | 375.5 | |
| 0.00 | 0.71 | 0.00 | 0.77 | -9.66 | 26.63 | 63.66 | 262.19 | 0.8936 | 316.0 | 300.4 | |
| 0.00 | 1.06 | 0.00 | 1.14 | -8.77 | 26.07 | 63.09 | 263.21 | 0.8894 | 236.0 | 294.2 | |
| 0.00 | 0.62 | 0.00 | 0.66 | -9.03 | 25.88 | 62.90 | 262.93 | 0.8879 | 237.0 | 217.9 | |
| 0.00 | 0.88 | 0.00 | 0.93 | -8.30 | 25.53 | 62.55 | 263.76 | 0.8853 | -227.0 | -162.9 | |
| 0.00 | 0.88 | 0.00 | 0.93 | -9.66 | 25.61 | 62.63 | 262.22 | 0.8856 | 513.0 | 478.5 | |
| 0.00 | 0.44 | 0.00 | 0.42 | -12.83 | 22.23 | 59.25 | 258.61 | 0.8569 | -174.0 | -221.2 | |
| 0.00 | 0.88 | 0.00 | 0.84 | -12.85 | 21.99 | 59.02 | 258.58 | 0.8548 | -494.0 | -400.4 | |
| 0.00 | 0.88 | 0.00 | 0.84 | -12.71 | 21.94 | 58.96 | 258.75 | 0.8543 | -550.0 | -510.2 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -13.26 | 16.43 | 53.46 | 257.90 | 0.8020 | -361.0 | -375.3 | |
| 0.00 | 2.29 | 0.00 | 1.82 | -9.72 | 14.73 | 51.75 | 262.34 | 0.7833 | -531.0 | -483.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
