SDO HMI 2014-04-10 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 29.10 | 0.00 | 14.96 | -18.73 | 325.39 | 2.42 | 196.91 | 0.2683 | -131.8 | 192.0 | |
|
previous
or next observation for the same group /

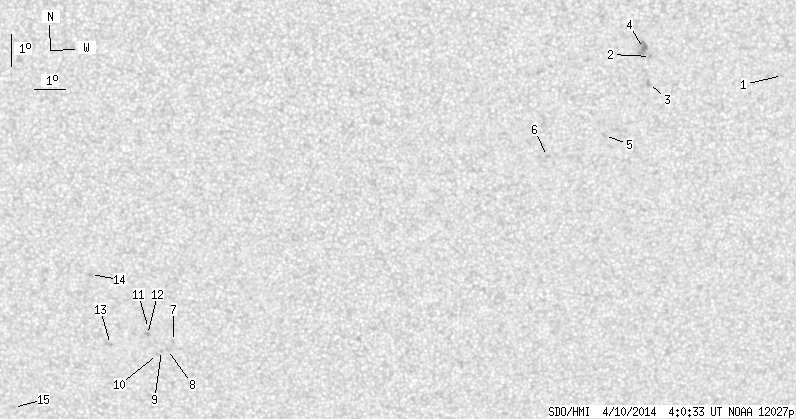

back to the solar disc SDO HMI 2014-04-10 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.59 | -15.21 | 336.66 | 13.68 | 234.46 | 0.2818 | 708.0 | 608.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -14.71 | 332.44 | 9.47 | 226.12 | 0.2218 | 868.0 | 691.8 | |
| 0.00 | 2.73 | 0.00 | 1.39 | -15.53 | 332.42 | 9.44 | 223.39 | 0.2311 | 889.0 | 758.2 | |
| 0.00 | 8.82 | 0.00 | 4.47 | -14.47 | 332.21 | 9.24 | 226.25 | 0.2162 | 1063.0 | 863.7 | |
| 0.00 | 2.03 | 0.00 | 1.03 | -17.14 | 331.09 | 8.12 | 214.77 | 0.2377 | 777.0 | 616.9 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -17.80 | 329.31 | 6.34 | 207.10 | 0.2317 | 1023.0 | 830.4 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -23.55 | 317.28 | -5.70 | 163.23 | 0.3169 | -747.0 | -605.1 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -23.80 | 317.07 | -5.91 | 162.91 | 0.3219 | -733.0 | -568.8 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -23.82 | 316.87 | -6.11 | 162.40 | 0.3233 | -750.0 | -608.5 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -23.95 | 316.73 | -6.25 | 162.16 | 0.3260 | -652.0 | -483.2 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -23.13 | 316.47 | -6.50 | 160.57 | 0.3145 | -924.0 | -786.6 | |
| 0.00 | 1.68 | 0.00 | 0.88 | -23.31 | 316.43 | -6.54 | 160.67 | 0.3176 | -947.0 | -813.6 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -23.61 | 315.19 | -7.78 | 157.77 | 0.3295 | -876.0 | -712.9 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -21.41 | 314.67 | -8.31 | 153.26 | 0.3002 | -782.0 | -655.1 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -25.55 | 311.79 | -11.18 | 152.54 | 0.3810 | -894.0 | -586.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
