SDO HMI 2014-04-10 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.90 | 350.27 | 52.94 | 281.61 | 11.87 | 273.44 | -48.98 | 69.81 | 0.7879 | -458.4 | -182.9 | |
|
previous
or next observation for the same group /

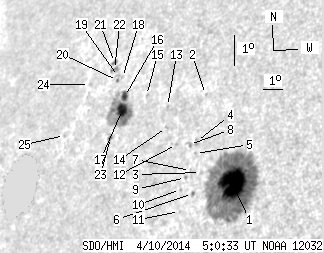

back to the solar disc SDO HMI 2014-04-10 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.20 | 260.34 | 38.78 | 201.32 | 11.07 | 275.07 | -47.36 | 70.17 | 0.7697 | -1125.6 | -324.0 | |
| 0.00 | 0.71 | 0.00 | 0.58 | 14.04 | 273.07 | -49.36 | 67.36 | 0.7999 | -435.0 | -380.0 | |
| 0.00 | 0.62 | 0.00 | 0.49 | 11.54 | 273.48 | -48.94 | 70.19 | 0.7875 | -210.0 | -252.0 | |
| 0.00 | 2.56 | 0.00 | 2.08 | 12.55 | 273.05 | -49.38 | 69.13 | 0.7952 | -523.0 | -476.8 | |
| 0.00 | 0.88 | 0.00 | 0.71 | 12.17 | 273.10 | -49.33 | 69.57 | 0.7934 | -264.0 | -306.2 | |
| 0.53 | 1.59 | 0.42 | 1.27 | 10.91 | 273.25 | -49.17 | 71.05 | 0.7878 | -526.8 | -440.2 | |
| 0.00 | 0.26 | 0.00 | 0.21 | 11.65 | 272.99 | -49.44 | 70.25 | 0.7928 | -389.0 | -369.0 | |
| 0.00 | 2.03 | 0.00 | 1.66 | 12.49 | 272.73 | -49.70 | 69.33 | 0.7980 | -405.0 | -362.1 | |
| 0.00 | 1.24 | 0.00 | 1.00 | 11.44 | 272.80 | -49.63 | 70.56 | 0.7941 | -271.0 | -232.8 | |
| 0.00 | 0.88 | 0.00 | 0.72 | 11.08 | 272.65 | -49.78 | 71.05 | 0.7945 | -317.0 | -275.6 | |
| 0.00 | 0.71 | 0.00 | 0.57 | 10.39 | 272.75 | -49.67 | 71.86 | 0.7913 | 475.0 | 355.1 | |
| 0.00 | 1.15 | 0.00 | 0.95 | 12.54 | 272.09 | -50.34 | 69.51 | 0.8045 | -396.0 | -282.7 | |
| 0.00 | 1.15 | 0.00 | 0.98 | 13.81 | 271.28 | -51.14 | 68.31 | 0.8161 | -279.0 | -167.6 | |
| 0.00 | 1.15 | 0.00 | 0.97 | 13.13 | 271.44 | -50.99 | 69.04 | 0.8125 | 681.0 | 504.2 | |
| 0.00 | 0.97 | 0.00 | 0.85 | 14.26 | 270.08 | -52.34 | 68.22 | 0.8285 | 542.0 | 468.7 | |
| 3.88 | 59.55 | 3.51 | 53.83 | 14.33 | 268.92 | -53.50 | 68.54 | 0.8390 | 641.3 | 209.5 | |
| 9.09 | -16.00 | 8.19 | -16.00 | 13.91 | 268.96 | -53.47 | 69.00 | 0.8376 | 813.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 1.13 | 14.96 | 268.59 | -53.84 | 67.93 | 0.8437 | 577.0 | 507.5 | |
| 0.00 | 1.68 | 0.00 | 1.55 | 15.01 | 268.36 | -54.07 | 67.96 | 0.8459 | 512.0 | 495.9 | |
| 0.35 | 1.15 | 0.33 | 1.06 | 14.89 | 268.35 | -54.07 | 68.10 | 0.8456 | 543.2 | 523.7 | |
| 0.97 | 2.47 | 0.91 | 2.31 | 15.49 | 267.96 | -54.47 | 67.55 | 0.8506 | 428.7 | 322.6 | |
| 0.00 | 3.62 | 0.00 | 3.37 | 15.26 | 268.05 | -54.38 | 67.78 | 0.8492 | 570.0 | 475.5 | |
| 0.88 | 2.65 | 0.80 | 2.39 | 13.06 | 268.61 | -53.82 | 70.10 | 0.8383 | 319.8 | 77.9 | |
| 0.00 | 0.79 | 0.00 | 0.76 | 14.89 | 266.83 | -55.60 | 68.60 | 0.8585 | 332.0 | 283.8 | |
| 0.00 | 0.88 | 0.00 | 0.85 | 13.35 | 266.01 | -56.42 | 70.58 | 0.8615 | 478.0 | 333.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
