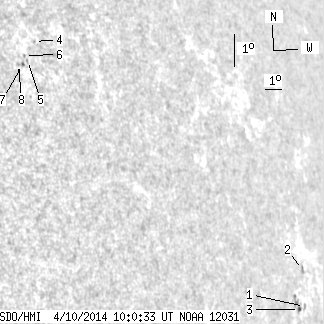

SDO HMI 2014-04-10 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 17.55 | 1.20 | 21.09 | 3.69 | 24.53 | 64.84 | 277.08 | 0.9068 | 329.7 | 251.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.94 | 0.00 | 2.71 | 2.20 | 28.46 | 68.77 | 274.65 | 0.9360 | 180.0 | 65.5 | |
| 0.00 | 2.47 | 0.00 | 3.46 | 3.32 | 28.44 | 68.75 | 275.84 | 0.9368 | -428.0 | -371.6 | |
| 0.88 | 7.50 | 1.20 | 10.15 | 2.07 | 28.03 | 68.34 | 274.57 | 0.9333 | 410.3 | 439.3 | |
| 0.00 | 0.79 | 0.00 | 0.68 | 8.86 | 12.67 | 52.98 | 285.24 | 0.8198 | 379.0 | 306.9 | |
| 0.00 | 0.88 | 0.00 | 0.75 | 8.24 | 12.19 | 52.50 | 284.63 | 0.8137 | 347.0 | 261.4 | |
| 0.00 | 0.71 | 0.00 | 0.60 | 8.38 | 12.07 | 52.38 | 284.84 | 0.8128 | 520.0 | 456.0 | |
| 0.00 | 1.41 | 0.00 | 1.19 | 8.09 | 11.91 | 52.22 | 284.54 | 0.8106 | 664.0 | 665.7 | |
| 0.00 | 1.85 | 0.00 | 1.55 | 8.07 | 11.71 | 52.02 | 284.57 | 0.8086 | 549.0 | 463.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
