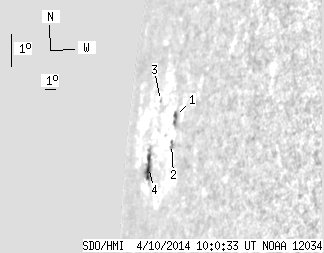

SDO HMI 2014-04-10 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.53 | 27.26 | 28.00 | 75.02 | 4.04 | 240.58 | -79.11 | 84.76 | 0.9841 | -12.7 | -0.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.06 | 5.91 | 2.35 | 13.11 | 4.93 | 243.24 | -76.45 | 83.54 | 0.9758 | -353.6 | -268.9 | |
| 0.00 | 3.09 | 0.00 | 6.93 | 4.07 | 243.00 | -76.69 | 84.44 | 0.9763 | -66.0 | -93.4 | |
| 0.00 | 1.15 | 0.00 | 3.14 | 5.64 | 240.76 | -78.93 | 83.13 | 0.9845 | -78.0 | -1.3 | |
| 8.47 | 17.11 | 25.65 | 51.84 | 3.72 | 239.58 | -80.11 | 85.21 | 0.9872 | 23.2 | 134.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
