SDO HMI 2014-04-10 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.71 | 0.00 | 11.22 | -18.58 | 326.63 | 7.49 | 209.79 | 0.2907 | 22.4 | 183.3 | |
|
previous
or next observation for the same group /

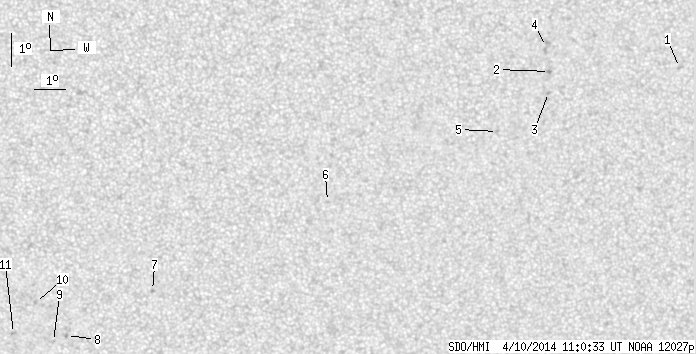

back to the solar disc SDO HMI 2014-04-10 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.21 | 0.00 | 1.16 | -15.29 | 336.58 | 17.44 | 240.02 | 0.3352 | 639.0 | 531.0 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -15.52 | 332.40 | 13.26 | 232.62 | 0.2793 | 1029.0 | 897.7 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -16.16 | 332.41 | 13.27 | 230.79 | 0.2857 | 730.0 | 652.3 | |
| 0.00 | 5.38 | 0.00 | 2.77 | -14.76 | 332.26 | 13.11 | 234.64 | 0.2702 | 487.0 | 670.1 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -17.38 | 330.85 | 11.71 | 224.05 | 0.2798 | 757.0 | 588.3 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -19.61 | 325.51 | 6.37 | 203.82 | 0.2600 | 709.0 | 613.1 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -22.41 | 319.93 | 0.79 | 182.57 | 0.2849 | -844.0 | -660.1 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -23.82 | 317.12 | -2.03 | 173.98 | 0.3099 | -777.0 | -647.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -24.01 | 316.69 | -2.46 | 172.80 | 0.3138 | -603.0 | -507.6 | |
| 0.00 | 1.76 | 0.00 | 0.91 | -22.77 | 316.12 | -3.02 | 170.47 | 0.2949 | -898.0 | -678.5 | |
| 0.00 | 1.94 | 0.00 | 1.01 | -23.74 | 315.38 | -3.77 | 168.87 | 0.3130 | -983.0 | -691.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
