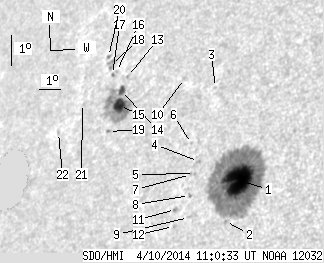

SDO HMI 2014-04-10 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.84 | 363.75 | 50.94 | 273.82 | 11.77 | 273.52 | -45.62 | 68.62 | 0.7527 | -433.4 | -167.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 11:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.84 | 274.77 | 38.41 | 200.06 | 11.03 | 275.05 | -44.09 | 68.90 | 0.7343 | -1018.2 | -282.9 | |
| 0.00 | 1.06 | 0.00 | 0.77 | 9.78 | 274.72 | -44.42 | 70.67 | 0.7333 | -564.0 | -449.9 | |
| 0.00 | 1.15 | 0.00 | 0.88 | 14.09 | 273.37 | -45.77 | 65.80 | 0.7643 | -389.0 | -364.9 | |
| 0.00 | 1.94 | 0.00 | 1.47 | 11.77 | 273.16 | -45.98 | 68.77 | 0.7575 | -597.0 | -519.8 | |
| 0.00 | 1.15 | 0.00 | 0.87 | 11.40 | 273.06 | -46.08 | 69.27 | 0.7572 | -572.0 | -382.8 | |
| 0.00 | 0.79 | 0.00 | 0.61 | 12.37 | 272.72 | -46.43 | 68.21 | 0.7644 | -343.0 | -330.4 | |
| 0.00 | 0.79 | 0.00 | 0.60 | 11.39 | 272.89 | -46.25 | 69.37 | 0.7590 | -391.0 | -313.4 | |
| 0.00 | 1.06 | 0.00 | 0.80 | 10.72 | 272.98 | -46.16 | 70.17 | 0.7557 | -730.0 | -595.7 | |
| 0.00 | 1.32 | 0.00 | 0.99 | 10.03 | 273.07 | -46.08 | 71.01 | 0.7524 | -440.0 | -403.6 | |
| 0.00 | 1.59 | 0.00 | 1.25 | 14.50 | 271.86 | -47.29 | 65.98 | 0.7811 | -106.0 | -137.6 | |
| 0.00 | 1.76 | 0.00 | 1.34 | 10.33 | 272.43 | -46.71 | 70.88 | 0.7602 | 382.0 | 329.9 | |
| 0.00 | 0.71 | 0.00 | 0.53 | 9.80 | 272.44 | -46.70 | 71.54 | 0.7583 | -471.0 | -392.8 | |
| 0.00 | 1.32 | 0.00 | 1.11 | 14.79 | 269.08 | -50.07 | 66.77 | 0.8090 | 519.0 | 440.4 | |
| 3.53 | 62.27 | 2.96 | 52.15 | 14.36 | 268.92 | -50.23 | 67.34 | 0.8091 | 573.5 | 155.3 | |
| 11.47 | -14.00 | 9.57 | -14.00 | 13.88 | 268.97 | -50.18 | 67.88 | 0.8071 | 766.9 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.75 | 15.00 | 268.47 | -50.68 | 66.76 | 0.8154 | 616.0 | 509.3 | |
| 0.00 | 1.06 | 0.00 | 0.90 | 14.92 | 268.30 | -50.85 | 66.92 | 0.8167 | 453.0 | 471.5 | |
| 0.00 | 5.73 | 0.00 | 4.93 | 15.25 | 268.14 | -51.01 | 66.60 | 0.8193 | 657.0 | 509.8 | |
| 0.00 | 1.41 | 0.00 | 1.18 | 13.08 | 268.66 | -50.48 | 68.94 | 0.8074 | 382.0 | 340.9 | |
| 0.00 | 1.41 | 0.00 | 1.22 | 15.53 | 267.89 | -51.25 | 66.37 | 0.8224 | 412.0 | 331.0 | |
| 0.00 | 0.35 | 0.00 | 0.31 | 14.10 | 267.06 | -52.08 | 68.32 | 0.8255 | 437.0 | 417.0 | |
| 0.00 | 1.23 | 0.00 | 1.10 | 13.27 | 266.10 | -53.05 | 69.62 | 0.8319 | 506.0 | 340.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
