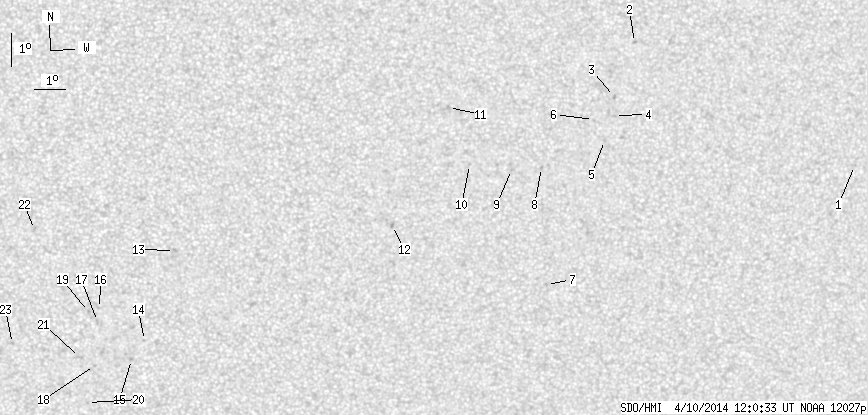

SDO HMI 2014-04-10 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 29.61 | 0.00 | 15.35 | -19.99 | 323.18 | 4.58 | 197.55 | 0.2903 | 8.1 | -16.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.58 | -17.43 | 340.48 | 21.89 | 239.89 | 0.4129 | 683.0 | 443.8 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -13.91 | 332.93 | 14.34 | 239.50 | 0.2802 | 867.0 | 621.8 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -15.56 | 332.40 | 13.80 | 233.54 | 0.2871 | 968.0 | 809.4 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -16.14 | 332.44 | 13.84 | 231.96 | 0.2931 | 726.0 | 580.7 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -16.91 | 332.17 | 13.58 | 229.34 | 0.2974 | 701.0 | 557.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -16.28 | 331.77 | 13.18 | 230.27 | 0.2858 | 547.0 | 528.9 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -21.39 | 330.63 | 12.03 | 215.88 | 0.3326 | 629.0 | 492.7 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -17.78 | 330.20 | 11.60 | 222.78 | 0.2833 | 843.0 | 656.8 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -17.86 | 329.24 | 10.64 | 220.20 | 0.2736 | 613.0 | 611.6 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -17.73 | 327.89 | 9.29 | 216.83 | 0.2578 | 689.0 | 580.1 | |
| 0.00 | 1.85 | 0.00 | 0.94 | -15.99 | 327.14 | 8.54 | 219.14 | 0.2273 | 874.0 | 653.3 | |
| 0.00 | 2.38 | 0.00 | 1.22 | -19.64 | 325.51 | 6.92 | 205.54 | 0.2642 | 925.0 | 657.3 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -20.44 | 318.54 | -0.05 | 179.81 | 0.2514 | -881.0 | -702.4 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -23.25 | 317.56 | -1.04 | 176.80 | 0.2992 | -652.0 | -481.0 | |
| 0.00 | 1.76 | 0.00 | 0.92 | -23.85 | 317.13 | -1.47 | 175.64 | 0.3096 | -793.0 | -602.7 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -22.24 | 316.11 | -2.49 | 171.85 | 0.2847 | -671.0 | -454.5 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -22.65 | 316.03 | -2.56 | 171.84 | 0.2917 | -887.0 | -728.7 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -24.03 | 315.91 | -2.69 | 172.15 | 0.3148 | -767.0 | -637.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -22.33 | 315.75 | -2.85 | 170.75 | 0.2872 | -876.0 | -768.2 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -25.20 | 315.65 | -2.95 | 171.97 | 0.3346 | -734.0 | -554.1 | |
| 0.00 | 2.20 | 0.00 | 1.15 | -23.78 | 315.42 | -3.18 | 170.60 | 0.3118 | -887.0 | -643.6 | |
| 0.00 | 1.76 | 0.00 | 0.90 | -19.77 | 314.07 | -4.52 | 162.77 | 0.2515 | -804.0 | -680.5 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -23.32 | 313.23 | -5.36 | 163.99 | 0.3124 | -926.0 | -692.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
