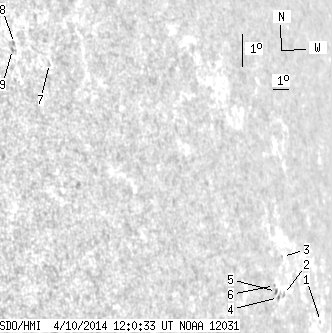

SDO HMI 2014-04-10 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.87 | 0.00 | 12.45 | 3.67 | 24.60 | 66.00 | 276.86 | 0.9147 | 238.6 | 262.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.47 | 1.72 | 32.00 | 73.40 | 273.55 | 0.9610 | -253.0 | -203.0 | |
| 0.00 | 1.94 | 0.00 | 2.85 | 2.19 | 28.46 | 69.87 | 274.49 | 0.9426 | 185.0 | 92.7 | |
| 0.00 | 0.62 | 0.00 | 0.91 | 3.35 | 28.54 | 69.94 | 275.70 | 0.9439 | -412.0 | -398.9 | |
| 0.00 | 1.23 | 0.00 | 1.77 | 2.06 | 28.01 | 69.42 | 274.41 | 0.9398 | 295.0 | 335.1 | |
| 0.00 | 1.76 | 0.00 | 2.51 | 2.22 | 27.86 | 69.26 | 274.61 | 0.9390 | 569.0 | 492.0 | |
| 0.00 | 0.71 | 0.00 | 1.00 | 2.39 | 27.70 | 69.11 | 274.80 | 0.9382 | 351.0 | 316.4 | |
| 0.00 | 0.79 | 0.00 | 0.72 | 7.90 | 13.92 | 55.33 | 283.47 | 0.8397 | 346.0 | 258.9 | |
| 0.00 | 1.06 | 0.00 | 0.92 | 8.36 | 12.18 | 53.58 | 284.48 | 0.8244 | 354.0 | 375.4 | |
| 0.00 | 1.50 | 0.00 | 1.30 | 8.17 | 12.04 | 53.44 | 284.28 | 0.8226 | 712.0 | 606.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
