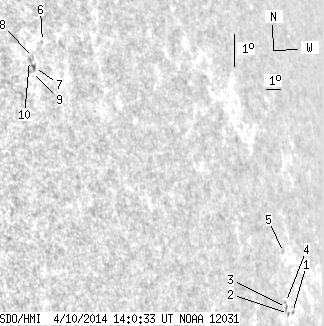

SDO HMI 2014-04-10 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.35 | 0.00 | 14.82 | 4.70 | 22.03 | 64.53 | 278.28 | 0.9042 | 336.7 | 294.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 1.64 | 2.15 | 28.43 | 70.93 | 274.30 | 0.9486 | 239.0 | 158.2 | |
| 0.00 | 1.06 | 0.00 | 1.60 | 2.08 | 28.05 | 70.56 | 274.28 | 0.9464 | 320.0 | 302.5 | |
| 0.00 | 1.59 | 0.00 | 2.39 | 2.24 | 27.89 | 70.39 | 274.48 | 0.9456 | 516.0 | 432.9 | |
| 0.00 | 1.23 | 0.00 | 1.85 | 2.39 | 27.82 | 70.32 | 274.64 | 0.9453 | 326.0 | 299.7 | |
| 0.00 | 1.15 | 0.00 | 1.74 | 3.91 | 27.88 | 70.38 | 276.23 | 0.9468 | -140.0 | -182.1 | |
| 0.00 | 0.71 | 0.00 | 0.64 | 8.98 | 12.83 | 55.34 | 284.72 | 0.8421 | 353.0 | 295.8 | |
| 0.00 | 2.38 | 0.00 | 2.13 | 8.12 | 12.22 | 54.72 | 283.89 | 0.8346 | 453.0 | 424.1 | |
| 0.00 | 0.26 | 0.00 | 0.24 | 8.43 | 12.23 | 54.73 | 284.24 | 0.8354 | 310.0 | 348.7 | |
| 0.00 | 1.06 | 0.00 | 0.94 | 7.95 | 12.03 | 54.53 | 283.74 | 0.8325 | 550.0 | 407.6 | |
| 0.00 | 1.85 | 0.00 | 1.65 | 8.32 | 12.00 | 54.50 | 284.18 | 0.8330 | 440.0 | 480.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
