SDO HMI 2014-04-10 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.85 | 30.23 | 16.01 | 43.50 | -8.07 | 27.42 | 70.47 | 263.55 | 0.9403 | 324.7 | 275.5 | |
|
previous
or next observation for the same group /

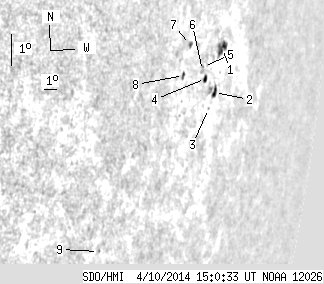

back to the solar disc SDO HMI 2014-04-10 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.55 | 11.02 | 8.40 | 16.65 | -7.23 | 28.39 | 71.44 | 264.39 | 0.9464 | 499.7 | 388.9 | |
| 2.65 | 6.70 | 3.95 | 9.93 | -8.59 | 28.18 | 71.23 | 262.97 | 0.9448 | 164.8 | 363.8 | |
| 0.00 | 0.79 | 0.00 | 1.16 | -9.11 | 27.85 | 70.90 | 262.43 | 0.9427 | 444.0 | 393.8 | |
| 1.68 | 2.65 | 2.39 | 3.77 | -8.25 | 27.20 | 70.25 | 263.38 | 0.9392 | 371.9 | 378.5 | |
| 0.00 | 0.35 | 0.00 | 0.50 | -7.92 | 26.89 | 69.94 | 263.75 | 0.9375 | 590.0 | 587.8 | |
| 0.00 | 2.73 | 0.00 | 3.83 | -8.05 | 26.85 | 69.90 | 263.62 | 0.9372 | 453.0 | 386.1 | |
| 0.00 | 2.29 | 0.00 | 3.05 | -7.38 | 25.57 | 68.62 | 264.42 | 0.9295 | -316.0 | -229.2 | |
| 0.97 | 2.47 | 1.27 | 3.23 | -8.34 | 25.32 | 68.37 | 263.39 | 0.9275 | -175.3 | -114.7 | |
| 0.00 | 1.23 | 0.00 | 1.38 | -14.10 | 21.35 | 64.41 | 257.19 | 0.8989 | 135.0 | 265.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
