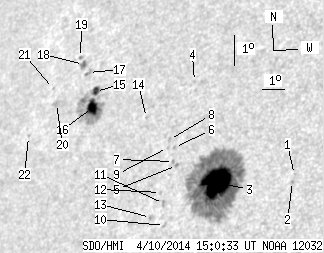

SDO HMI 2014-04-10 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.04 | 380.40 | 50.00 | 274.81 | 11.72 | 273.58 | -43.37 | 67.71 | 0.7281 | -501.4 | -200.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.18 | 11.06 | 278.15 | -38.80 | 66.30 | 0.6740 | -618.0 | -527.7 | |
| 0.00 | 1.41 | 0.00 | 0.94 | 10.84 | 278.10 | -38.85 | 66.62 | 0.6735 | -678.0 | -542.8 | |
| 52.90 | 290.17 | 37.10 | 203.65 | 11.03 | 275.01 | -41.94 | 67.94 | 0.7102 | -1105.1 | -317.4 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 14.33 | 273.39 | -43.55 | 64.46 | 0.7422 | -429.0 | -343.7 | |
| 0.00 | 1.59 | 0.00 | 1.15 | 11.69 | 273.21 | -43.74 | 67.90 | 0.7330 | -656.0 | -519.9 | |
| 0.00 | 1.15 | 0.00 | 0.84 | 12.27 | 273.00 | -43.94 | 67.25 | 0.7376 | -363.0 | -357.8 | |
| 0.00 | 1.15 | 0.00 | 0.83 | 11.83 | 273.05 | -43.90 | 67.80 | 0.7353 | -507.0 | -452.7 | |
| 0.00 | 1.59 | 0.00 | 1.17 | 12.55 | 272.73 | -44.22 | 67.03 | 0.7417 | -412.0 | -308.9 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 12.30 | 272.70 | -44.25 | 67.36 | 0.7410 | -525.0 | -453.7 | |
| 0.00 | 1.85 | 0.00 | 1.33 | 9.83 | 273.03 | -43.91 | 70.40 | 0.7277 | -504.0 | -468.4 | |
| 0.00 | 2.20 | 0.00 | 1.60 | 10.53 | 272.87 | -44.08 | 69.56 | 0.7322 | -605.0 | -530.2 | |
| 0.00 | 1.59 | 0.00 | 1.16 | 10.89 | 272.68 | -44.27 | 69.18 | 0.7357 | -489.0 | -393.9 | |
| 0.00 | 1.41 | 0.00 | 1.03 | 10.13 | 272.39 | -44.56 | 70.28 | 0.7361 | 454.0 | 400.3 | |
| 0.00 | 1.15 | 0.00 | 0.87 | 13.33 | 271.55 | -45.40 | 66.58 | 0.7574 | 549.0 | 397.2 | |
| 3.62 | 58.99 | 2.89 | 47.10 | 14.36 | 268.97 | -47.98 | 66.44 | 0.7874 | 632.3 | 210.3 | |
| 11.02 | -15.00 | 8.78 | -15.00 | 13.85 | 268.97 | -47.98 | 67.05 | 0.7856 | 769.6 | 999999 | |
| 0.00 | 2.65 | 0.00 | 2.15 | 15.01 | 268.45 | -48.50 | 65.88 | 0.7948 | 612.0 | 472.8 | |
| 1.50 | 4.50 | 1.23 | 3.69 | 15.29 | 268.12 | -48.82 | 65.69 | 0.7989 | 641.5 | 449.6 | |
| 0.00 | 1.59 | 0.00 | 1.31 | 15.53 | 267.90 | -49.04 | 65.49 | 0.8019 | 430.0 | 344.1 | |
| 0.00 | 3.62 | 0.00 | 3.00 | 14.12 | 267.19 | -49.76 | 67.44 | 0.8039 | 387.0 | 317.6 | |
| 0.00 | 0.88 | 0.00 | 0.74 | 14.62 | 266.89 | -50.06 | 66.96 | 0.8084 | 393.0 | 319.4 | |
| 0.00 | 1.15 | 0.00 | 0.97 | 13.17 | 266.11 | -50.84 | 68.97 | 0.8111 | 490.0 | 430.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
