SDO HMI 2014-04-10 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.23 | 374.86 | 55.25 | 267.89 | 11.64 | 273.66 | -42.74 | 67.51 | 0.7209 | -547.3 | -205.4 | |
|
previous
or next observation for the same group /

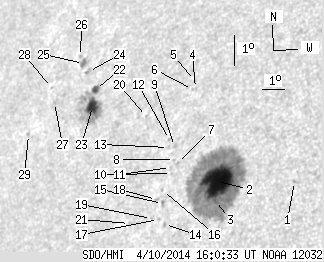

back to the solar disc SDO HMI 2014-04-10 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.58 | 10.80 | 278.11 | -38.29 | 66.37 | 0.6666 | -607.0 | -520.4 | |
| 58.54 | 286.89 | 40.70 | 199.62 | 11.02 | 275.00 | -41.40 | 67.69 | 0.7040 | -1138.6 | -307.5 | |
| 2.38 | -2.00 | 1.65 | -2.00 | 10.42 | 275.01 | -41.38 | 68.48 | 0.7012 | -1128.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.03 | 14.06 | 273.47 | -42.93 | 64.49 | 0.7344 | -542.0 | -467.6 | |
| 0.00 | 0.62 | 0.00 | 0.45 | 14.32 | 273.36 | -43.03 | 64.21 | 0.7366 | -259.0 | -216.0 | |
| 0.00 | 0.79 | 0.00 | 0.58 | 14.04 | 273.34 | -43.05 | 64.58 | 0.7356 | -415.0 | -349.8 | |
| 0.00 | 1.50 | 0.00 | 1.08 | 11.71 | 273.21 | -43.19 | 67.62 | 0.7270 | -722.0 | -560.7 | |
| 0.00 | 0.53 | 0.00 | 0.38 | 11.85 | 273.05 | -43.34 | 67.52 | 0.7293 | -428.0 | -369.7 | |
| 0.00 | 1.59 | 0.00 | 1.15 | 12.26 | 272.97 | -43.43 | 67.02 | 0.7319 | -619.0 | -414.6 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 11.41 | 273.01 | -43.38 | 68.10 | 0.7280 | -494.0 | -364.7 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 11.61 | 272.93 | -43.46 | 67.89 | 0.7297 | -342.0 | -303.1 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 12.50 | 272.71 | -43.69 | 66.84 | 0.7358 | -462.0 | -402.3 | |
| 0.00 | 1.23 | 0.00 | 0.90 | 12.25 | 272.72 | -43.68 | 67.16 | 0.7346 | -450.0 | -357.1 | |
| 0.00 | 1.32 | 0.00 | 0.94 | 9.82 | 273.00 | -43.40 | 70.19 | 0.7219 | -697.0 | -522.6 | |
| 0.00 | 1.76 | 0.00 | 1.27 | 10.49 | 272.80 | -43.60 | 69.40 | 0.7267 | -636.0 | -504.9 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 10.90 | 272.73 | -43.67 | 68.89 | 0.7291 | -435.0 | -401.7 | |
| 0.00 | 1.23 | 0.00 | 0.89 | 10.00 | 272.71 | -43.68 | 70.08 | 0.7258 | -478.0 | -318.6 | |
| 0.00 | 1.50 | 0.00 | 1.08 | 10.64 | 272.52 | -43.88 | 69.33 | 0.7304 | -471.0 | -387.7 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 10.06 | 272.41 | -43.99 | 70.14 | 0.7294 | 554.0 | 431.8 | |
| 0.00 | 0.79 | 0.00 | 0.59 | 13.32 | 271.53 | -44.87 | 66.35 | 0.7517 | 457.0 | 467.1 | |
| 0.00 | 1.50 | 0.00 | 1.10 | 9.97 | 271.48 | -44.92 | 70.63 | 0.7394 | -436.0 | -300.4 | |
| 3.53 | 55.72 | 2.79 | 43.99 | 14.38 | 268.97 | -47.42 | 66.18 | 0.7820 | 632.6 | 207.4 | |
| 11.02 | -22.00 | 8.68 | -22.00 | 13.84 | 268.98 | -47.41 | 66.83 | 0.7799 | 827.7 | 999999 | |
| 0.00 | 2.64 | 0.00 | 2.12 | 14.99 | 268.47 | -47.93 | 65.66 | 0.7892 | 603.0 | 487.2 | |
| 1.76 | 3.44 | 1.43 | 2.79 | 15.27 | 268.15 | -48.25 | 65.46 | 0.7934 | 646.5 | 496.2 | |
| 0.00 | 1.41 | 0.00 | 1.15 | 15.51 | 267.93 | -48.46 | 65.27 | 0.7963 | 476.0 | 375.1 | |
| 0.00 | 1.32 | 0.00 | 1.08 | 14.11 | 267.12 | -49.27 | 67.26 | 0.7991 | 540.0 | 415.5 | |
| 0.00 | 0.71 | 0.00 | 0.58 | 14.61 | 266.83 | -49.56 | 66.78 | 0.8037 | 320.0 | 284.6 | |
| 0.00 | 1.23 | 0.00 | 1.03 | 13.18 | 266.14 | -50.25 | 68.74 | 0.8055 | 495.0 | 422.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
