SDO HMI 2014-04-10 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.97 | 25.03 | 6.10 | 38.68 | -7.83 | 27.68 | 71.84 | 263.73 | 0.9483 | 303.1 | 282.0 | |
|
previous
or next observation for the same group /

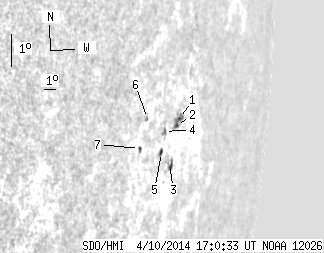

back to the solar disc SDO HMI 2014-04-10 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 9.79 | 1.14 | 15.75 | -7.14 | 28.55 | 72.70 | 264.39 | 0.9533 | 474.5 | 405.0 | |
| 1.23 | -1.00 | 1.98 | -1.00 | -7.37 | 28.33 | 72.49 | 264.17 | 0.9521 | 546.4 | 999999 | |
| 0.00 | 5.64 | 0.00 | 8.91 | -8.57 | 28.15 | 72.31 | 262.91 | 0.9507 | 566.0 | 284.3 | |
| 0.00 | 3.26 | 0.00 | 4.93 | -7.66 | 27.26 | 71.41 | 263.94 | 0.9461 | 426.0 | 415.7 | |
| 1.50 | 2.64 | 2.25 | 3.97 | -8.30 | 27.24 | 71.39 | 263.26 | 0.9458 | 276.3 | 257.5 | |
| 0.00 | 1.41 | 0.00 | 1.97 | -7.42 | 25.60 | 69.75 | 264.30 | 0.9365 | -286.0 | -250.8 | |
| 0.53 | 2.29 | 0.73 | 3.15 | -8.37 | 25.25 | 69.40 | 263.31 | 0.9340 | -262.8 | -189.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
