SDO HMI 2014-04-10 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.66 | 0.00 | 10.15 | -14.26 | 303.93 | -11.92 | 129.73 | 0.2676 | 190.7 | 170.9 | |
|
previous
or next observation for the same group /

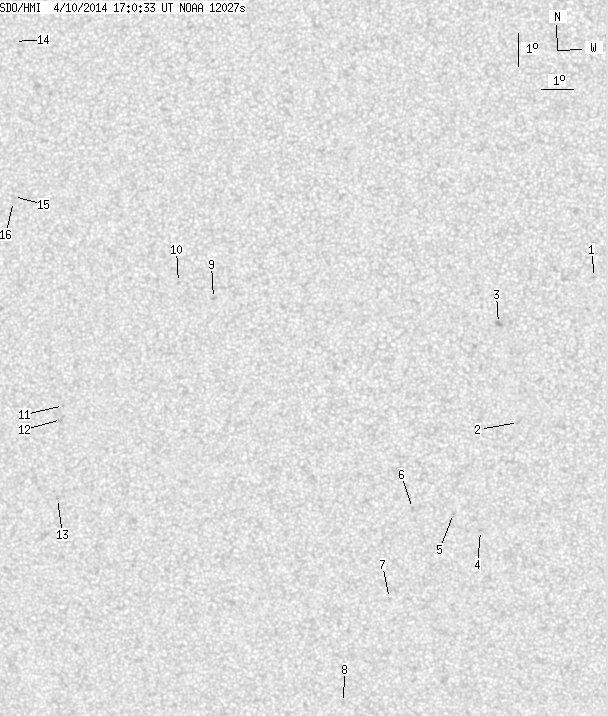

back to the solar disc SDO HMI 2014-04-10 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.39 | -10.47 | 313.39 | -2.45 | 151.95 | 0.0898 | 955.0 | 609.9 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -14.83 | 310.98 | -4.86 | 152.11 | 0.1760 | 913.0 | 746.4 | |
| 0.00 | 2.56 | 0.00 | 1.28 | -11.83 | 310.43 | -5.41 | 138.10 | 0.1389 | 987.0 | 876.9 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -18.12 | 309.69 | -6.16 | 154.26 | 0.2357 | 894.0 | 623.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -17.59 | 308.85 | -6.99 | 150.18 | 0.2344 | 840.0 | 719.0 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -17.41 | 307.56 | -8.29 | 145.46 | 0.2437 | 843.0 | 620.9 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -20.17 | 306.67 | -9.17 | 148.78 | 0.2901 | 804.0 | 500.6 | |
| 0.00 | 1.76 | 0.00 | 0.93 | -23.39 | 304.93 | -10.92 | 150.03 | 0.3495 | -2.0 | -6.4 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -10.91 | 301.60 | -14.25 | 110.36 | 0.2589 | -905.0 | -701.1 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -10.40 | 300.52 | -15.33 | 107.36 | 0.2736 | -135.0 | -118.7 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -14.00 | 296.56 | -19.28 | 114.45 | 0.3535 | -708.0 | -585.0 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -14.42 | 296.46 | -19.38 | 115.45 | 0.3575 | -671.0 | -444.3 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -16.82 | 296.09 | -19.76 | 120.99 | 0.3791 | -768.0 | -684.5 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -2.99 | 295.58 | -20.26 | 82.57 | 0.3503 | -7.0 | -7.0 | |
| 0.00 | 2.03 | 0.00 | 1.07 | -7.65 | 295.38 | -20.46 | 95.95 | 0.3498 | 7.0 | -1.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -7.80 | 295.38 | -20.47 | 96.38 | 0.3501 | 4.0 | 1.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
