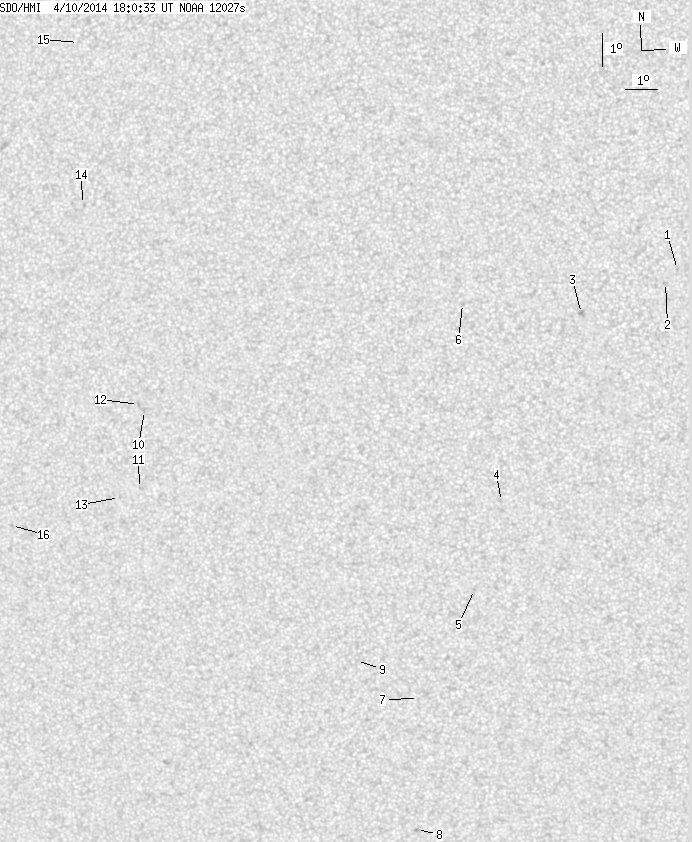

SDO HMI 2014-04-10 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.25 | 0.00 | 9.47 | -14.31 | 303.10 | -12.19 | 130.97 | 0.2698 | 5.5 | 64.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.57 | -10.53 | 313.36 | -1.93 | 157.50 | 0.0869 | 947.0 | 747.3 | |
| 0.00 | 1.68 | 0.00 | 0.83 | -10.92 | 312.99 | -2.30 | 155.57 | 0.0957 | 668.0 | 578.4 | |
| 0.00 | 2.82 | 0.00 | 1.41 | -11.84 | 310.40 | -4.89 | 140.98 | 0.1331 | 1018.0 | 868.3 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -17.52 | 307.73 | -7.56 | 148.08 | 0.2384 | 853.0 | 565.7 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -20.21 | 306.73 | -8.56 | 150.56 | 0.2855 | 806.0 | 597.0 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -11.49 | 306.74 | -8.55 | 123.81 | 0.1762 | 771.0 | 515.6 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -23.58 | 304.66 | -10.63 | 150.96 | 0.3499 | -34.0 | -22.3 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -27.76 | 304.20 | -11.09 | 155.48 | 0.4120 | -726.0 | -626.3 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -22.35 | 302.70 | -12.59 | 144.70 | 0.3503 | 9.0 | 4.7 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -14.47 | 296.46 | -18.83 | 116.16 | 0.3497 | -683.0 | -560.3 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -16.83 | 296.07 | -19.23 | 121.66 | 0.3719 | -742.0 | -616.2 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -14.28 | 296.28 | -19.01 | 115.47 | 0.3511 | -748.0 | -620.6 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -17.09 | 295.37 | -19.92 | 121.44 | 0.3834 | -776.0 | -599.6 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -8.19 | 294.90 | -20.39 | 97.52 | 0.3494 | -580.0 | -588.8 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -3.32 | 294.96 | -20.33 | 83.53 | 0.3506 | 1.0 | -9.4 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -17.80 | 291.62 | -23.68 | 119.21 | 0.4398 | -696.0 | -498.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
