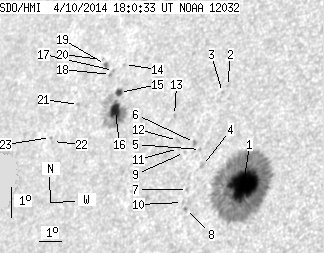

SDO HMI 2014-04-10 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.02 | 373.88 | 50.54 | 262.49 | 11.67 | 273.66 | -41.63 | 66.92 | 0.7087 | -585.6 | -215.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.39 | 290.75 | 39.22 | 198.97 | 11.03 | 274.99 | -40.30 | 67.12 | 0.6914 | -1245.7 | -336.7 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 14.21 | 273.72 | -41.57 | 63.60 | 0.7205 | -487.0 | -426.5 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 14.03 | 273.55 | -41.74 | 63.91 | 0.7215 | -626.0 | -545.6 | |
| 0.00 | 2.38 | 0.00 | 1.68 | 11.76 | 273.19 | -42.10 | 67.05 | 0.7152 | -676.0 | -518.4 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 12.27 | 273.00 | -42.29 | 66.47 | 0.7194 | -570.0 | -508.6 | |
| 0.00 | 2.03 | 0.00 | 1.45 | 12.52 | 272.70 | -42.59 | 66.30 | 0.7238 | -552.0 | -416.6 | |
| 0.00 | 1.32 | 0.00 | 0.94 | 11.04 | 272.69 | -42.60 | 68.23 | 0.7177 | -439.0 | -384.9 | |
| 0.00 | 1.41 | 0.00 | 1.00 | 10.41 | 272.72 | -42.57 | 69.04 | 0.7148 | -720.0 | -591.0 | |
| 0.00 | 0.79 | 0.00 | 0.57 | 12.23 | 272.34 | -42.95 | 66.85 | 0.7266 | -524.0 | -449.3 | |
| 0.00 | 1.50 | 0.00 | 1.06 | 10.65 | 272.56 | -42.74 | 68.81 | 0.7176 | -408.0 | -347.9 | |
| 0.00 | 1.06 | 0.00 | 0.76 | 12.37 | 272.06 | -43.23 | 66.79 | 0.7303 | -372.0 | -231.9 | |
| 0.00 | 1.76 | 0.00 | 1.28 | 12.63 | 271.96 | -43.33 | 66.50 | 0.7324 | 282.0 | 286.0 | |
| 0.00 | 1.23 | 0.00 | 0.90 | 13.45 | 271.66 | -43.64 | 65.62 | 0.7392 | 624.0 | 542.8 | |
| 0.00 | 0.88 | 0.00 | 0.69 | 15.27 | 268.99 | -46.30 | 64.61 | 0.7744 | 559.0 | 476.7 | |
| 3.17 | 56.51 | 2.46 | 43.65 | 14.38 | 269.01 | -46.28 | 65.68 | 0.7706 | 645.2 | 239.8 | |
| 10.58 | -15.00 | 8.16 | -15.00 | 13.81 | 268.98 | -46.31 | 66.39 | 0.7687 | 852.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.76 | 15.12 | 268.53 | -46.76 | 65.00 | 0.7783 | 495.0 | 455.0 | |
| 0.00 | 1.41 | 0.00 | 1.11 | 15.00 | 268.43 | -46.86 | 65.19 | 0.7788 | 596.0 | 501.4 | |
| 0.88 | 2.56 | 0.70 | 2.03 | 15.34 | 268.10 | -47.19 | 64.92 | 0.7834 | 679.0 | 581.5 | |
| 0.00 | 0.53 | 0.00 | 0.42 | 15.52 | 267.86 | -47.43 | 64.81 | 0.7864 | 307.0 | 335.2 | |
| 0.00 | 1.32 | 0.00 | 1.06 | 14.14 | 267.20 | -48.10 | 66.75 | 0.7878 | 584.0 | 498.5 | |
| 0.00 | 1.68 | 0.00 | 1.36 | 13.05 | 266.28 | -49.02 | 68.43 | 0.7930 | 512.0 | 354.1 | |
| 0.00 | 0.97 | 0.00 | 0.79 | 13.18 | 266.14 | -49.15 | 68.32 | 0.7948 | 534.0 | 457.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
