SDO HMI 2014-04-10 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.78 | 68.06 | 40.81 | 128.48 | 4.15 | 241.17 | -74.12 | 84.03 | 0.9652 | 19.7 | -4.8 | |
|
previous
or next observation for the same group /

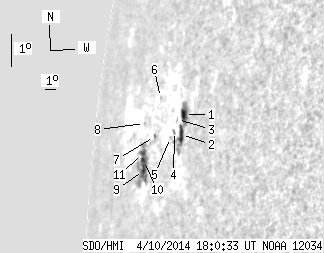

back to the solar disc SDO HMI 2014-04-10 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.47 | 28.56 | 8.91 | 46.76 | 4.86 | 243.72 | -71.57 | 82.95 | 0.9538 | -574.5 | -198.1 | |
| 4.76 | -1.00 | 7.78 | -1.00 | 4.27 | 243.57 | -71.72 | 83.59 | 0.9542 | -428.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 1.64 | 4.78 | 243.05 | -72.24 | 83.13 | 0.9572 | -174.0 | -160.2 | |
| 0.00 | 1.50 | 0.00 | 2.56 | 4.43 | 242.84 | -72.46 | 83.52 | 0.9580 | -68.0 | -33.1 | |
| 0.00 | 0.26 | 0.00 | 0.46 | 4.29 | 242.46 | -72.83 | 83.72 | 0.9598 | 234.0 | 244.0 | |
| 0.00 | 0.62 | 0.00 | 1.19 | 5.66 | 240.97 | -74.32 | 82.51 | 0.9675 | -193.0 | -161.7 | |
| 0.00 | 1.76 | 0.00 | 3.43 | 4.50 | 240.65 | -74.64 | 83.74 | 0.9682 | 294.0 | 291.5 | |
| 0.00 | 0.71 | 0.00 | 1.52 | 5.04 | 239.26 | -76.03 | 83.38 | 0.9742 | 361.0 | 359.4 | |
| 6.26 | 33.68 | 13.00 | 70.92 | 3.58 | 239.58 | -75.71 | 84.83 | 0.9722 | 271.8 | 94.3 | |
| 2.73 | -9.00 | 5.71 | -9.00 | 3.89 | 239.50 | -75.79 | 84.52 | 0.9727 | 459.0 | 999999 | |
| 2.56 | -9.00 | 5.41 | -9.00 | 4.12 | 239.31 | -75.99 | 84.31 | 0.9736 | 510.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
