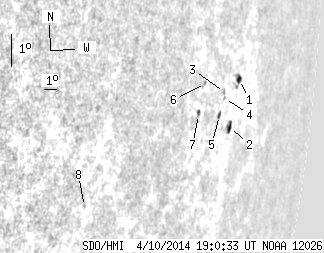

SDO HMI 2014-04-10 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.87 | 22.75 | 11.63 | 36.42 | -8.00 | 27.34 | 72.60 | 263.47 | 0.9518 | 230.4 | 135.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 19:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.47 | 6.61 | 4.30 | 11.47 | -7.06 | 28.81 | 74.07 | 264.37 | 0.9602 | 321.6 | 302.4 | |
| 3.17 | 5.03 | 5.37 | 8.51 | -8.56 | 28.41 | 73.67 | 262.84 | 0.9577 | 288.2 | 151.6 | |
| 0.00 | 1.41 | 0.00 | 2.28 | -7.59 | 27.42 | 72.69 | 263.91 | 0.9530 | 521.0 | 485.5 | |
| 0.00 | 0.88 | 0.00 | 1.43 | -7.77 | 27.50 | 72.76 | 263.73 | 0.9534 | 420.0 | 399.0 | |
| 1.23 | 2.73 | 1.96 | 4.35 | -8.31 | 27.23 | 72.49 | 263.17 | 0.9518 | 354.1 | 252.2 | |
| 0.00 | 1.59 | 0.00 | 2.32 | -7.51 | 25.52 | 70.78 | 264.14 | 0.9426 | -252.0 | -236.2 | |
| 0.00 | 3.35 | 0.00 | 4.83 | -8.48 | 25.26 | 70.52 | 263.13 | 0.9407 | -345.0 | -162.4 | |
| 0.00 | 1.15 | 0.00 | 1.23 | -11.98 | 17.80 | 63.06 | 259.57 | 0.8886 | -137.0 | -188.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
