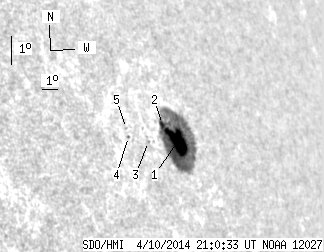

SDO HMI 2014-04-10 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.07 | 153.79 | 32.00 | 164.08 | 12.87 | 13.32 | 59.69 | 287.94 | 0.8865 | -629.1 | -192.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.25 | 150.96 | 29.05 | 161.28 | 12.83 | 13.43 | 59.80 | 287.87 | 0.8873 | -687.0 | -193.3 | |
| 2.82 | -1.00 | 2.95 | -1.00 | 13.30 | 12.70 | 59.07 | 288.58 | 0.8826 | -644.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 1.16 | 12.67 | 11.63 | 57.99 | 288.18 | 0.8728 | -584.0 | -522.4 | |
| 0.00 | 0.97 | 0.00 | 0.95 | 12.72 | 10.49 | 56.86 | 288.56 | 0.8636 | 186.0 | 155.3 | |
| 0.00 | 0.71 | 0.00 | 0.69 | 12.97 | 10.47 | 56.84 | 288.85 | 0.8640 | 239.0 | 126.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
