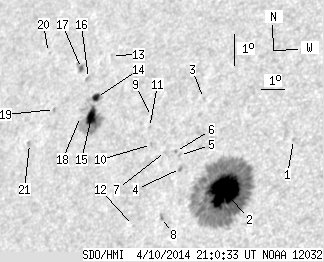

SDO HMI 2014-04-10 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.42 | 377.75 | 46.99 | 257.89 | 11.63 | 273.77 | -39.87 | 66.08 | 0.6883 | -586.5 | -247.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 1.03 | 12.45 | 277.44 | -36.19 | 62.81 | 0.6505 | -682.0 | -470.3 | |
| 52.11 | 300.24 | 34.75 | 200.44 | 11.01 | 275.00 | -38.64 | 66.27 | 0.6718 | -1325.6 | -382.8 | |
| 0.00 | 1.06 | 0.00 | 0.73 | 14.01 | 273.61 | -40.02 | 63.01 | 0.7025 | -648.0 | -537.5 | |
| 0.00 | 2.12 | 0.00 | 1.46 | 11.84 | 273.10 | -40.53 | 66.16 | 0.6977 | -729.0 | -602.8 | |
| 0.00 | 1.06 | 0.00 | 0.73 | 12.25 | 272.99 | -40.65 | 65.66 | 0.7009 | -567.0 | -497.2 | |
| 0.00 | 1.15 | 0.00 | 0.80 | 12.39 | 272.80 | -40.83 | 65.58 | 0.7037 | -601.0 | -484.3 | |
| 0.00 | 0.97 | 0.00 | 0.68 | 12.42 | 272.38 | -41.25 | 65.75 | 0.7085 | -305.0 | -261.1 | |
| 0.00 | 2.03 | 0.00 | 1.40 | 10.34 | 272.59 | -41.05 | 68.43 | 0.6970 | -853.0 | -668.0 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 13.59 | 271.56 | -42.07 | 64.66 | 0.7229 | 688.0 | 600.4 | |
| 0.00 | 1.41 | 0.00 | 1.00 | 12.69 | 271.75 | -41.88 | 65.73 | 0.7168 | 566.0 | 499.4 | |
| 0.00 | 1.23 | 0.00 | 0.88 | 13.24 | 271.56 | -42.08 | 65.11 | 0.7214 | 747.0 | 609.6 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 10.17 | 271.47 | -42.17 | 69.18 | 0.7092 | -513.0 | -443.7 | |
| 0.00 | 0.71 | 0.00 | 0.53 | 15.70 | 269.34 | -44.30 | 63.14 | 0.7559 | 572.0 | 486.2 | |
| 3.88 | 50.88 | 2.91 | 38.04 | 14.38 | 269.03 | -44.60 | 64.91 | 0.7534 | 613.1 | 366.6 | |
| 10.93 | -14.00 | 8.18 | -14.00 | 13.78 | 268.96 | -44.67 | 65.69 | 0.7516 | 822.8 | 999999 | |
| 0.00 | 2.73 | 0.00 | 2.08 | 15.03 | 268.51 | -45.13 | 64.36 | 0.7615 | 522.0 | 423.9 | |
| 1.50 | 5.29 | 1.15 | 4.07 | 15.38 | 268.10 | -45.53 | 64.13 | 0.7671 | 674.5 | 476.9 | |
| 0.00 | 0.35 | 0.00 | 0.27 | 13.82 | 268.47 | -45.17 | 65.87 | 0.7569 | -146.0 | -162.0 | |
| 0.00 | 1.23 | 0.00 | 0.96 | 14.14 | 267.23 | -46.41 | 66.03 | 0.7709 | 497.0 | 393.6 | |
| 0.00 | 0.35 | 0.00 | 0.28 | 16.02 | 266.41 | -47.22 | 64.13 | 0.7864 | 232.0 | 252.0 | |
| 0.00 | 1.85 | 0.00 | 1.45 | 13.13 | 266.35 | -47.28 | 67.63 | 0.7760 | 468.0 | 456.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
