SDO HMI 2014-04-10 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.54 | 153.44 | 32.02 | 166.35 | 12.87 | 13.35 | 60.27 | 287.78 | 0.8909 | -537.0 | -194.9 | |
|
previous
or next observation for the same group /

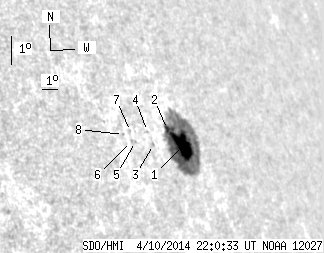

back to the solar disc SDO HMI 2014-04-10 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.72 | 148.50 | 29.02 | 161.41 | 12.83 | 13.51 | 60.43 | 287.70 | 0.8920 | -623.9 | -198.0 | |
| 2.82 | -1.00 | 3.00 | -1.00 | 13.26 | 12.68 | 59.60 | 288.39 | 0.8867 | -642.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 1.26 | 12.69 | 11.62 | 58.54 | 288.05 | 0.8772 | -631.0 | -558.2 | |
| 0.00 | 0.62 | 0.00 | 0.63 | 13.08 | 11.41 | 58.33 | 288.54 | 0.8763 | -490.0 | -456.7 | |
| 0.00 | 0.71 | 0.00 | 0.70 | 12.69 | 10.56 | 57.48 | 288.35 | 0.8687 | 54.0 | 67.6 | |
| 0.00 | 0.97 | 0.00 | 0.96 | 12.67 | 10.32 | 57.24 | 288.39 | 0.8667 | 91.0 | 77.2 | |
| 0.00 | 0.62 | 0.00 | 0.61 | 12.99 | 10.38 | 57.30 | 288.73 | 0.8679 | 222.0 | 133.1 | |
| 0.00 | 0.79 | 0.00 | 0.78 | 12.85 | 9.93 | 56.85 | 288.71 | 0.8639 | 369.0 | 299.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
