SDO HMI 2014-04-10 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.08 | 0.00 | 5.11 | -9.14 | 285.24 | -27.84 | 98.02 | 0.4705 | -132.6 | 88.0 | |
|
previous
or next observation for the same group /

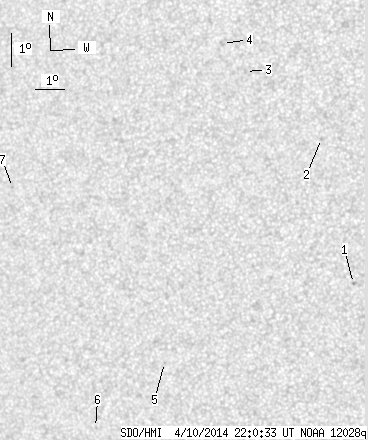

back to the solar disc SDO HMI 2014-04-10 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.53 | -12.48 | 289.86 | -23.22 | 107.58 | 0.4055 | -880.0 | -731.9 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -8.07 | 289.15 | -23.93 | 96.53 | 0.4059 | 598.0 | 463.8 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -5.95 | 286.73 | -26.35 | 91.40 | 0.4434 | 688.0 | 559.5 | |
| 0.00 | 2.38 | 0.00 | 1.32 | -5.07 | 286.00 | -27.08 | 89.51 | 0.4554 | 613.0 | 658.8 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -14.56 | 283.07 | -30.01 | 108.64 | 0.5130 | -680.0 | -559.5 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -16.40 | 280.23 | -32.85 | 110.77 | 0.5588 | -560.0 | -427.7 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -8.99 | 278.27 | -34.81 | 97.22 | 0.5705 | -707.0 | -545.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
