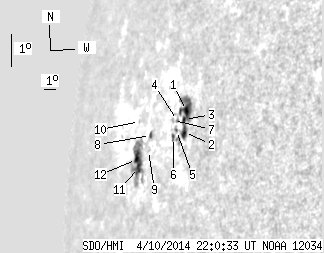

SDO HMI 2014-04-10 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.49 | 87.22 | 31.07 | 142.58 | 4.11 | 241.35 | -71.73 | 83.74 | 0.9536 | -76.3 | 40.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-10 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.97 | 32.72 | 5.74 | 47.49 | 4.91 | 243.84 | -69.24 | 82.56 | 0.9411 | -770.6 | -376.7 | |
| 4.59 | -1.00 | 6.62 | -1.00 | 4.24 | 243.81 | -69.27 | 83.27 | 0.9407 | -555.5 | 999999 | |
| 1.41 | -1.00 | 2.05 | -1.00 | 4.65 | 243.72 | -69.36 | 82.85 | 0.9415 | -545.6 | 999999 | |
| 0.00 | 1.68 | 0.00 | 2.51 | 4.68 | 243.10 | -69.98 | 82.91 | 0.9451 | -122.0 | -80.7 | |
| 0.44 | 1.94 | 0.66 | 2.91 | 4.38 | 243.08 | -70.00 | 83.23 | 0.9450 | -110.0 | -147.9 | |
| 1.32 | 6.53 | 2.00 | 9.73 | 4.18 | 242.85 | -70.23 | 83.46 | 0.9461 | 107.5 | 94.1 | |
| 0.00 | 1.85 | 0.00 | 2.83 | 4.71 | 242.73 | -70.35 | 82.93 | 0.9472 | 407.0 | 324.9 | |
| 1.06 | 2.47 | 1.80 | 4.21 | 4.47 | 240.58 | -72.50 | 83.48 | 0.9583 | 350.2 | 304.2 | |
| 0.00 | 0.26 | 0.00 | 0.45 | 4.03 | 240.48 | -72.60 | 83.96 | 0.9585 | 407.0 | 387.0 | |
| 0.00 | 0.26 | 0.00 | 0.49 | 5.03 | 239.26 | -73.82 | 83.09 | 0.9649 | 384.0 | 377.3 | |
| 3.97 | 39.51 | 7.17 | 71.96 | 3.61 | 239.52 | -73.56 | 84.52 | 0.9628 | 421.2 | 247.0 | |
| 2.73 | -11.00 | 5.03 | -11.00 | 3.88 | 239.24 | -73.84 | 84.28 | 0.9643 | 332.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
