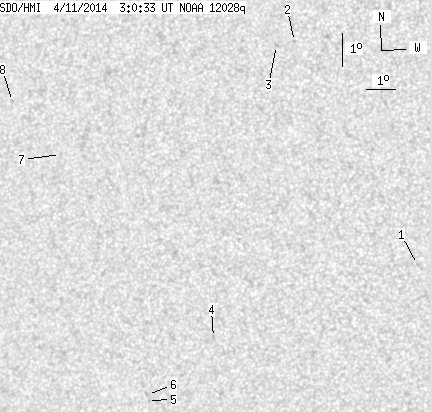

SDO HMI 2014-04-11 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.62 | 0.00 | 5.42 | -11.23 | 282.73 | -27.60 | 102.72 | 0.4713 | -247.5 | -194.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-11 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.71 | 290.19 | -20.14 | 110.30 | 0.3597 | -704.0 | -608.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -5.84 | 286.60 | -23.72 | 91.04 | 0.4020 | 901.0 | 702.9 | |
| 0.00 | 1.77 | 0.00 | 0.96 | -5.94 | 286.00 | -24.32 | 91.30 | 0.4115 | 776.0 | 594.8 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -14.63 | 283.08 | -27.25 | 110.13 | 0.4737 | -613.0 | -533.7 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -16.43 | 280.46 | -29.87 | 112.25 | 0.5182 | -630.0 | -622.2 | |
| 0.00 | 2.21 | 0.00 | 1.28 | -16.24 | 280.49 | -29.84 | 111.93 | 0.5170 | -391.0 | -324.2 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -8.84 | 278.36 | -31.97 | 97.23 | 0.5294 | -650.0 | -469.0 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -7.15 | 276.78 | -33.55 | 94.02 | 0.5518 | -669.0 | -573.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
