SDO HMI 2014-04-11 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.97 | 0.00 | 11.62 | -13.48 | 304.58 | -5.19 | 152.02 | 0.1887 | 102.2 | 103.6 | |
|
previous
or next observation for the same group /

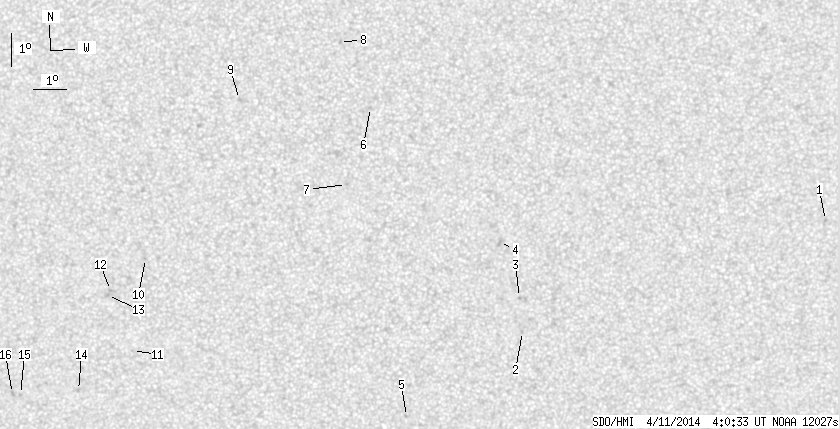

back to the solar disc SDO HMI 2014-04-11 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.54 | -11.89 | 320.84 | 11.07 | 240.58 | 0.2166 | 896.0 | 674.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -15.35 | 311.50 | 1.72 | 190.02 | 0.1672 | 774.0 | 683.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -14.32 | 311.40 | 1.62 | 190.63 | 0.1493 | 793.0 | 658.1 | |
| 0.00 | 4.06 | 0.00 | 2.03 | -12.65 | 310.77 | 1.00 | 188.23 | 0.1190 | 849.0 | 634.8 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -17.94 | 307.85 | -1.92 | 171.30 | 0.2118 | 736.0 | 521.1 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -8.57 | 306.84 | -2.93 | 132.54 | 0.0689 | 785.0 | 644.4 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -10.88 | 306.09 | -3.69 | 143.92 | 0.1078 | 916.0 | 639.1 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -6.61 | 305.92 | -3.85 | 100.44 | 0.0682 | 872.0 | 782.2 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -8.29 | 302.86 | -6.92 | 109.46 | 0.1270 | 818.0 | 556.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -13.04 | 299.81 | -9.97 | 126.64 | 0.2111 | -812.0 | -626.1 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -15.82 | 299.27 | -10.51 | 134.69 | 0.2480 | -624.0 | -666.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -13.98 | 298.67 | -11.11 | 127.25 | 0.2360 | -902.0 | -791.2 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -14.13 | 298.56 | -11.21 | 127.52 | 0.2388 | -802.0 | -694.3 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -17.01 | 297.47 | -12.31 | 133.67 | 0.2831 | -937.0 | -724.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -17.08 | 295.59 | -14.19 | 130.01 | 0.3072 | -788.0 | -640.4 | |
| 0.00 | 2.21 | 0.00 | 1.15 | -17.05 | 295.33 | -14.44 | 129.44 | 0.3101 | -938.0 | -672.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
