SDO HMI 2014-04-11 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.66 | 402.28 | 50.52 | 259.80 | 11.54 | 273.82 | -35.96 | 63.97 | 0.6418 | -499.5 | -254.6 | |
|
previous
or next observation for the same group /

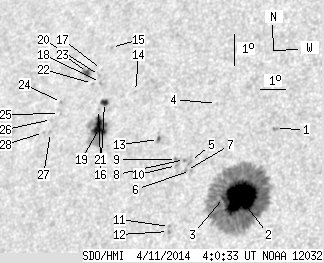

back to the solar disc SDO HMI 2014-04-11 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.38 | 0.00 | 1.51 | 13.10 | 275.98 | -33.80 | 60.32 | 0.6259 | 668.0 | 576.7 | |
| 55.34 | 322.95 | 35.04 | 204.76 | 10.98 | 274.98 | -34.80 | 64.05 | 0.6253 | -1385.5 | -373.5 | |
| 2.91 | -2.00 | 1.86 | -2.00 | 11.02 | 274.34 | -35.44 | 64.40 | 0.6334 | -637.3 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 14.04 | 273.59 | -36.19 | 60.66 | 0.6594 | -429.0 | -340.9 | |
| 0.00 | 3.27 | 0.00 | 2.14 | 12.28 | 272.89 | -36.89 | 63.52 | 0.6575 | -619.0 | -475.6 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 11.96 | 272.94 | -36.83 | 63.93 | 0.6552 | -708.0 | -610.4 | |
| 0.00 | 1.32 | 0.00 | 0.87 | 11.97 | 272.79 | -36.99 | 64.01 | 0.6571 | -649.0 | -562.5 | |
| 0.00 | 0.62 | 0.00 | 0.41 | 12.33 | 272.65 | -37.12 | 63.60 | 0.6606 | -603.0 | -548.6 | |
| 0.00 | 2.03 | 0.00 | 1.34 | 12.35 | 272.34 | -37.44 | 63.76 | 0.6644 | -645.0 | -491.5 | |
| 0.00 | 1.41 | 0.00 | 0.93 | 12.16 | 272.37 | -37.41 | 64.01 | 0.6630 | -580.0 | -408.5 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 10.24 | 272.39 | -37.39 | 66.69 | 0.6530 | -504.0 | -429.5 | |
| 0.00 | 1.41 | 0.00 | 0.92 | 10.09 | 272.37 | -37.41 | 66.92 | 0.6524 | -723.0 | -632.2 | |
| 0.79 | 2.03 | 0.53 | 1.36 | 13.03 | 271.51 | -38.26 | 63.32 | 0.6775 | 689.3 | 608.0 | |
| 0.00 | 0.97 | 0.00 | 0.67 | 14.64 | 270.28 | -39.50 | 61.91 | 0.6999 | 684.0 | 524.9 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 16.15 | 268.94 | -40.83 | 60.76 | 0.7221 | 509.0 | 450.5 | |
| 3.00 | 4.77 | 2.11 | 3.35 | 14.38 | 269.07 | -40.70 | 62.94 | 0.7117 | 739.3 | 495.5 | |
| 0.00 | 0.44 | 0.00 | 0.31 | 15.46 | 268.70 | -41.08 | 61.77 | 0.7211 | 532.0 | 487.2 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 15.04 | 268.76 | -41.02 | 62.27 | 0.7184 | 665.0 | 583.1 | |
| 12.97 | 40.69 | 9.08 | 28.47 | 13.58 | 269.04 | -40.74 | 63.99 | 0.7082 | 874.9 | 333.5 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 15.27 | 268.66 | -41.11 | 62.03 | 0.7206 | 724.0 | 631.5 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 14.17 | 268.87 | -40.90 | 63.32 | 0.7129 | 480.0 | 448.6 | |
| 0.00 | 1.32 | 0.00 | 0.94 | 15.03 | 268.43 | -41.35 | 62.46 | 0.7219 | 566.0 | 441.7 | |
| 2.65 | 5.47 | 1.90 | 3.94 | 15.40 | 268.13 | -41.65 | 62.15 | 0.7269 | 673.1 | 468.4 | |
| 0.00 | 1.15 | 0.00 | 0.83 | 14.51 | 267.25 | -42.53 | 63.75 | 0.7319 | 660.0 | 552.8 | |
| 0.00 | 0.44 | 0.00 | 0.32 | 14.16 | 267.25 | -42.53 | 64.19 | 0.7304 | 623.0 | 614.6 | |
| 0.00 | 0.88 | 0.00 | 0.64 | 13.99 | 266.95 | -42.83 | 64.55 | 0.7328 | 474.0 | 414.8 | |
| 0.00 | 1.85 | 0.00 | 1.34 | 13.57 | 267.00 | -42.77 | 65.06 | 0.7304 | 654.0 | 520.6 | |
| 0.00 | 0.88 | 0.00 | 0.64 | 13.60 | 266.70 | -43.08 | 65.18 | 0.7337 | 583.0 | 535.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
